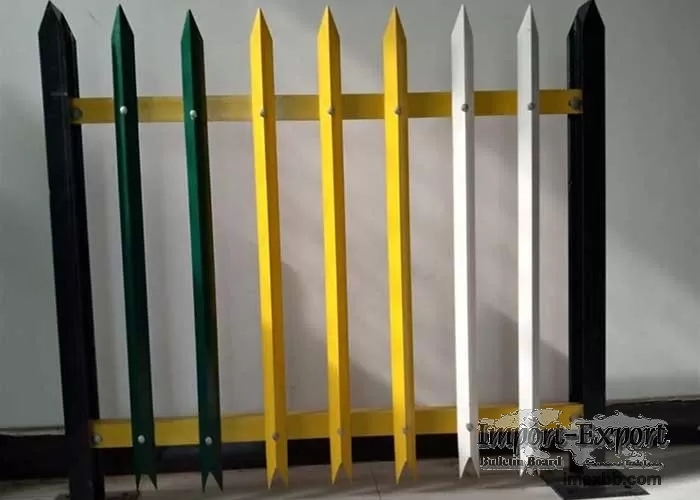

W Section Palisade Fencing 1.8m H Post Security Steel Fence

W Section Pale With Angle Iron Connect With Square Post welded security steel fence

Welded security steel Fence Brief Introduction



Product Description



Palisade fencing use as decoration or protection for various facilities in
industry, agriculture, infrastructure, transport, etc..

There are "D" and “ W” based on the diferent tops.

'D' Section Palisade
'D' Section refers to the shape of the vertical pale profile, which is best suited
to sites requiring a boundary with forbidding appearance and general damage
resistance.

'W' Section Palisade
The 'W' Section profile gives extra protection over 'D' Section to the pale fixing
on the attack face of the fence



Palisade Fencing Specifications



fence panel height 1m-5m
fence panel width 2m-3m
pale height 1m-5m
pale width W pale:62mm,72mm;D pale:65mm;angle steel:40x40mmx3mm
pale thicknesd 1.5-4.0mm
top point three triple point,single point, round point ETC
angle rail 50mmx50mm,63mmx63mm,
angle rail thickness 4mm-6mm
I beam post 100mmx55mmxheight:1.5m-6m,150mmx75mmxheight:3m-6m< , br>C post 125mmx65mmxheight:2.5m-3.5m
square post 70x70mmx3mm,80x80mmx3mm



UK BS1722 Standard all 2 rails palisade fence bays of 2.75m includes:

1 Palisade Fencing Posts
17 Palisade Fencing Pales
1 Palisade Fencing Top Rail
1 Palisade Fencing Bottom Rail
2 Palisade Fencing Fish plates
4 Palisade Fencing Anti Tamper M12 Bolts
34 Palisade Fencing Anti Tamper M8 Bolts
