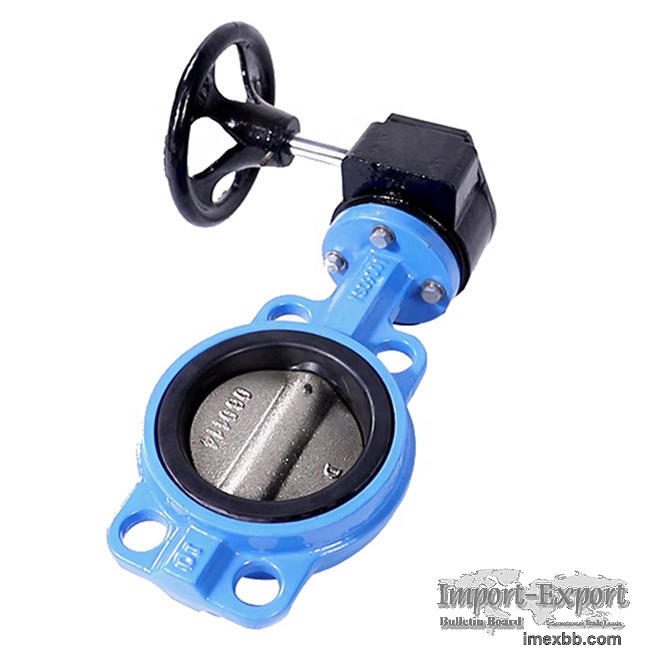

Wafer Butterfly Valve

Wafer Butterfly Valve
KXC Butterfly Valves are used for isolating and regulating flow. The closing
mechanism is a disc that allows for quick shut off, much like a ball valve.
Butterfly valves are light in weight so they require less support. Unlike the
ball valve, the disc is always present within the flow, therefore a pressure
drop is always induced during flow, regardless of valve position. The disc is
typically rotated a quarter turn when the valve is fully opened, but the valve
may also be opened incrementally in order to throttle flow.
Wafer Type Butterfly Valve
Wafer type ball valves fit between two flanges, with studs passing from one
flange through other. The valve is held in place and sealed with gasket by the
tension of suds. These are considered low cost butter fly valves.

Click to Enlarge
