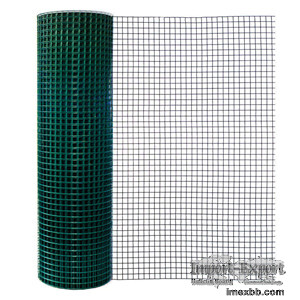

Welded Wire Mesh

Welded wire mesh are made of high quality wire through automatic process and
sophisticated welding technique. The finished products is level and flat with
sturdy structure.

The welded wire mesh are the most excellent anti-corrosion resistance among all
the steel wire mesh products, it is also the most versatile wire mesh due to
its wide application in different fields. The welded wire mesh can be
galvanized, PVC coated, or stainless steel welded wire mesh.

2 inch by 4 inch openings keep out pests and small critters
Strong mesh, won't come loose if cut in pieces or under pressure.
Galvanized before welding. Anti-corrosive and anti-rust.
Great for property boundaries, enclosing gardens and more
Specification of galvanized welded wire mesh
Opening Wire Diameter Width0.4-2M
Length5-50m electric galvanized before welded,
electric galvanized after welded,
hot-dipped galvanized before welded,
hot-dipped galvanized after welded,
PVC coated,
Stainless steel wire
In inch In metric unit
1/4" x 1/4" 6.4 x 6.4mm BWG24-22
3/8" x 3/8" 10.6x 10.6mm BWG22-19
1/2" x 1/2" 12.7 x 12.7mm BWG23-16
5/8" x 5/8" 16x 16mm BWG21-18
3/4" x 3/4" 19.1 x 19.1mm BWG21-16
1" x 1/2" 25.4x 12.7mm BWG21-16
1-1/2" x 1-1/2" 38 x 38mm BWG19-14
1" x 2" 25.4 x 50.8mm BWG16-14
2" x 2" 50.8 x 50.8mm BWG15-12
2" x 4" 50.8 x 101.6mm BWG15-12
4" x 4" 101.6 x 101.6mm BWG15-12
4" x 6" 101.6 x 152.4mm BWG15-12
6" x 6" 152.4 x 152.4mm BWG15-12
6" x 8" 152.4 x 203.2mm BWG14-12
Note: Special specifications can be made according to customers requires.
