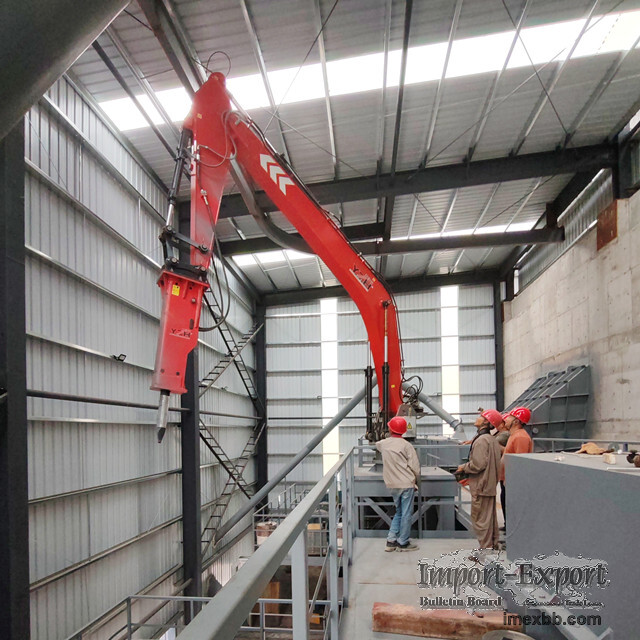

WHE1000 Pedestal Breaker Boom Systems

Main Parameters of WHE1000 Pedestal Breaker Boom Systems:
Model No：WHE1000
Boom weight(without hammer) 13000kg
Max.Horizontal Working radius 14160mm
Max.vertical working radius 11000mm
Min.vertical working radius 2530mm
Max.Height ：8680mm
The Features of WHE1000 Pedestal Breaker Boom Systems:
The core design of WHE1000 Pedestal Breaker Boom Systems centers on rugged
durability and high adaptability.

First, it typically employs a curved arm structure. Compared to straight arms,
curved arms offer superior working range and improved operating angles. This is
particularly advantageous when clearing material blockages at crusher discharge
points, enabling more effective penetration into material piles for prying and
breaking operations.

Second, it incorporates a fully hydraulic drive system. This means the entire
arm is powered by a hydraulic pump, delivering immense digging and crushing
forces capable of tackling the hardest minerals and most severe blockages. The
hydraulic system operates smoothly with controllable power output.

Third, its critical components undergo reinforcement. The working arm itself is
constructed from high-strength steel, while parts subjected to immense shear
forces—such as pins and bushings—typically undergo specialized heat
treatment. This process enhances hardness and wear resistance, significantly
extending the equipment's lifespan under harsh operating conditions.

Finally, it supports 360-degree continuous rotation. Its ingeniously designed
rotation mechanism prevents hydraulic lines from tangling during swiveling,
allowing the boom to rotate continuously without positional limits. This
delivers unmatched flexibility in confined spaces, eliminating the need for
frequent vehicle repositioning.

The Benefits of WHE1000 Pedestal Breaker Boom Systems:

Key Advantages

The benefits of WHE1000 Pedestal Breaker Boom Systems directly align with its
design features, manifesting across efficiency, economy, safety, and
reliability.

In terms of efficiency gains, it serves as a powerful solution for clearing
bottlenecks in production lines. When the discharge port of a primary crusher
becomes blocked by large ore chunks, the WHE1000 can swiftly intervene,
clearing the obstruction within minutes. This instantly resolves a situation
that might otherwise require hours of downtime for manual cleanup, ensuring
continuous and efficient operation of the entire sand and gravel aggregate
production line.

Economically, it excels with significantly lower power consumption than
comparable large equipment (e.g., excavators), using approximately one-sixth of
the energy. Its robust construction and targeted design also result in lower
failure rates, effectively controlling long-term maintenance and upkeep costs.

Safety and environmental compliance are enhanced through remote control
operation. Operators work from a comfortable, secure control room away from
hazardous zones (e.g., falling objects, dust, noise), significantly improving
personnel safety. As a purely electric, stationary unit, it produces zero
exhaust emissions at the worksite, aligning with modern factory environmental
standards.

Its rugged durability ensures sustained, stable operation under heavy loads and
high-impact conditions, delivering long-term investment returns for users.

The Application of WHE1000 Pedestal Breaker Boom Systems:

WHE1000 Pedestal Breaker Boom Systems find concentrated application primarily
in heavy industrial sectors.

A classic application is in large quarries or aggregate production lines. It is
typically fixed directly above the discharge chute of primary jaw crushers or
gyratory crushers. When large rock fragments from blasting become compressed at
the crusher outlet, forming an “arch bridge” that causes severe blockages,
operators remotely activate the WHE1000. The robotic arm extends its robust
articulated arm, utilizing a hydraulically powered breaker or rammer head
mounted at its tip to precisely impact, crush, and clear the blockage, rapidly
restoring production.

Additionally, in metallurgical steelworks, it can handle large slag clumps
solidified in ladles or slag pits. In underground mines, it is sometimes
installed near grate screens to break down oversized raw ore that cannot pass
through the mesh.

In summary, the YZH WHE1000 Pedestal Breaker Boom System is a highly efficient,
cost-effective, and reliable industrial solution engineered for extreme
conditions. It serves as the “road sweeper” ensuring uninterrupted flow in
critical crushing operations.
