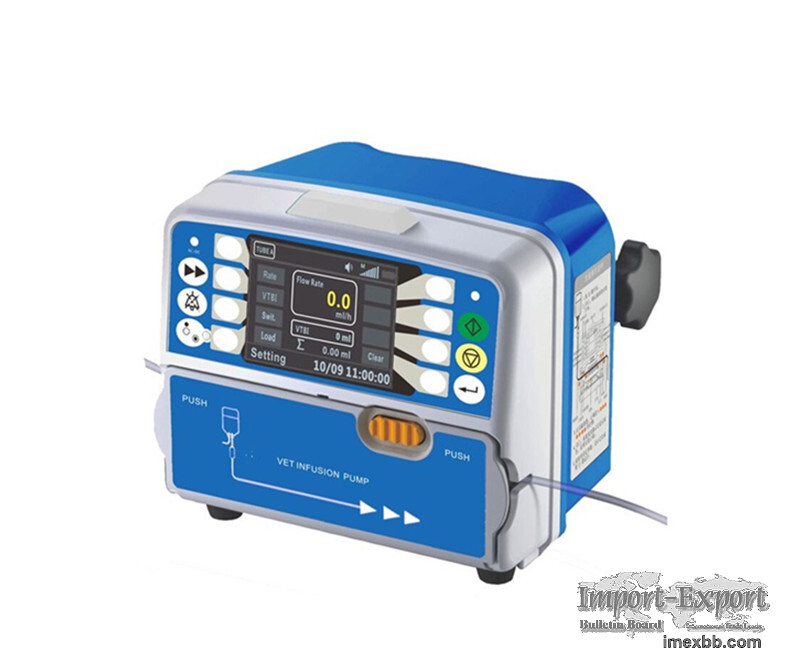

WMV200E Veterinary Infusion Pump

Veterinary Medical Devices Veterinary Medical Equipment Manufacturers

Veterinary Infusion Pump Features
1. History records
2. Four operation modes:Rate mode,drip mode,time mode,body weight mode.
3. Anti-reverse rotation detection
4. Various visual and audible alarms
5. Double CPU ensuring safe infusion
6. Real time display
7. 3 adjustable occlusion pressure settings Removable pump body,convenient for
cleaning
8. 12 months warranty

WONDCON Veterinary Infusion Pump Specifications
Pumping Mechanism: Curvilinear peristaltic
Occlusion Sensitivity: low, middle and high
IV Set: Support a wide variety brands of infusion set including major
manufacturers & selected local brands
Air-in-line Detection: Ultrasound sensor detection with four levels of air in
line alarm adjustable
Flow Rate: 0.1~1200 ml/h
 Power Supply, AC: 110/230 V (optional), 50-60 Hz, 25VA
Purge, Bolus Purge when pump stops, bolus when pump starts.Bolus rate300 ~ 1200
ml/h,purge rate 600ml/h
Battery: Rechargeable lithium polymer battery,7.4V,2100mAh operating time:about
6 hours at 25ml/h Charging time:10hs with power on, 3hs with power off.
Accuracy: Universal IV set: ±5%
Battery Life: 3 hours at 25 ml/h
VTBI: 0 ~ 9999 ml
Working Condition: Temperature:5℃~40℃,relative humidity:10~95%, air
pressure:86~106kPa
Infusion Mode: rate mode, drip mode,time mode,body weight mode
Relative Humidity: 30-75%
KVO Rate: 1 ~ 5 ml/h
 Atmospheric Pressure: 860-1060 hpa
Alarms Visual and audible alarms: Door open, Air-In-Line, Occlusion,  Infusion
completion, infusion near over, Start reminder function, Low Battery, Battery
depleted, malfunction etc.
Additional Features: Real-time shift totals, automatic power switching,mute
button, purge, bolus, history log, system memory
Size&weight: 145×100×120 mm(length×width×height) 1.4kg
Safety Classification: ClassⅠ, type CF
Volume Infused: 0-36000ml
Water Proof Level: IPx3
