WP885

As a wireless network manufacturer, Ceres has more than ten-year experience in
producing wifi extenders. If you have any demand, please feel free to contact
us.

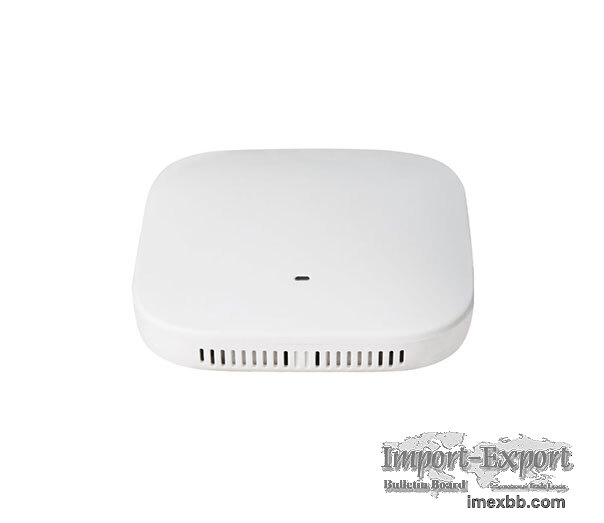

Indoor Dual-band Access Point WP885

WP885/WP888 business wireless access point for small business is a high-
stability, cost-effective 2.4 GHz +5GHz dual-frequency indoor AP launched by
Shenzhen Ceres Technology Co., Ltd. (hereinafter referred to as Ceres),
designed for the enterprise market. The low profile and simple design and
stable performance make this indoor access point the ideal equipment for
ceiling installation.

WP885/WP888 commercial wireless access points for small businesses adopt
Qualcomm enterprise-class chip and equipment, with one 10/100Mbps WAN port and
one 10/100Mbps LAN port. This commercial grade wifi access point supports PoE
power supply or DC12V power supply, also supports 802.11a/b/g/n/ac wireless
standard. WP885 ceiling wireless access point supports 2.4G/5G dual-frequency
（300Mbps+433Mbps）wireless transmission rate. Optional support built-in
GPON/EPON terminals, it is suitable for medium-density PON+WiFi environment,
providing cost-effective wireless coverage.

Hardware Specification
Attribute WP885
Dimensions 155mmX155mmX40mm
Interface 2*10/100Base-Tx
Rate 300Mbps+433Mbps
Antenna Built-in 2 dual-frequency high-gain omnidirectional antennas
Wireless Transmit Power 2.4GHz:
11b11Mbps：22dBm；
11g6Mbps ：22dBm；
11g54Mbps：19dBm；
11n MCS7-HT20：17 dBm；
11n MCS7-HT40：17dBm；
5GHz:
11a6Mbps ：20dBm；
11a54Mbps ：18dBm；
11n MCS7-HT20：17dBm；
11n MCS7-HT40：17dBm；
11ac MCS8-VHT20 ：17dBm；
11ac MCS9-VHT40 ：16dBm；
11ac MCS9-VHT80 ：15dBm；
Receiver Sensitivity 2.4GHz:
11b11Mbps：-90dBm；
11g6Mbps：-90dBm；
11g54Mbps：-75 dBm；
11n MCS7-HT20：-71dBm；
11n MCS7-HT40：-68dBm；
5GHz:
11a6Mbps：-90dBm；
11a54Mbps ：-75 dBm；
11n MCS7-HT20：-71dBm；
11n MCS7-HT40：-68dBm；
11ac MCS8-VHT20：-65 dBm；
11ac MCS9-VHT40：-63 dBm；
11ac MCS9-VHT80：-61 dBm；
CPU Qualcomm processor
Memory 128MB RAM
Flash 16MB
Power supply POE/DC12V
Operating Temperature -10～50℃
Storage Temperature -40～85℃
Operating Humidity 5～95％(non condensation)
Consumption ＜10W

Software Specification
Attribute WP885
WLAN Support IEEE801.11a/b/g/n/ac/ac wave2 standard
Support dynamic rate adjustment
Support channel automatic scanning and manual selection
Support dynamic power adjustment and manual power adjustment
Support intelligent roaming
Support ShortGI in 20M,40M,80M mode
Support Chinese SSID
Support WMM, implementing data processing and forwarding based on
application
Support 5G access priority
Support load balance based on AP traffic, frequency band, and number of
users
Security Support Open-system authentication mode
Support WEP authentication/encryption mode
Support WPA/WPA2-PSK authentication/encryption mode
Support WPA/WPA2-802.1X authentication/encryption mode
Support WPA-WPA2 hybrid authentication mode
Support WPAI authentication/encryption mode
Support 802.1X, Mac, portal, WeChat authentication mode
Network Support business traffic local forwarding and centralized forwarding
Support user access isolation under the same SSID
Support user access (ACL)
Support bandwidth control based on per user
Support bandwidth speed limit based on WAN port
Support network detection based on Ping and Arp
Support local forwarding mode, when the AP is disconnected from the AC,
the service is not interrupted.
Support DHCP Server, the client obtains the IP address through the AP
Support static IP/DHCP/PPPOE and other network access mode
Support IPV6 function
Support Soft GRE function
Management Support cloud service mode deployment (ACS+VAP)
Support AC centralized management
Support Web User Management (HTTPS)
Support CLI (SSH) management
Support Console port management
Support modify AP login password remotely
Support AP automatically go online and load configuration (plug and
play)
Support LED light control
Support periodic automatic restart of devices
Support batch modification of AP management platform address
Support batch upgrade based on AP location, AP model, AP version
Support AP status alarms
Ordering Information
Product Model Product Description
WP885 2*10/100M Ethernet port, support 2.4G/5G dual-frequency
（300Mbps+433Mbps）, built-in 3dBi 2X2 MIMO antenna, support 802.11a/b/g/n/ac
protocol, support 802.3at/af PoE powered, support 48VDC power supply, Tx power
22dBm_2.4G，20dBm_5G（2.4G 2*2,5G 1*1）
WP885E 2*10/100M Ethernet ports, 1*EPON optical port, support 2.4G/5G dual-
frequency（300Mbps+433Mbps）, built-in 3dBi 2X2 MIMO antenna, support
802.11a/b/g/n/ac protocol, support 802.3at/af PoE powered, support 48VDC power
supply, Tx power 22dBm_2.4G，20dBm_5G（2.4G 2*2,5G 1*1）
WP885G 2*10/100M Ethernet ports, 1*GPON optical port, support 2.4G/5G dual-
frequency（300Mbps+433Mbps）,built-in 3dBi 2X2 MIMO antenna, support
802.11a/b/g/n/ac protocol, support 802.3at/af PoE powered, support 48VDC power
supply, Tx power 22dBm_2.4G，20dBm_5G（2.4G 2*2,5G 1*1）

Minimum Order: 100 pieces
