WR33-N300

As a wireless network manufacturer, Ceres has more than ten-year experience in
producing wifi extenders. If you have any demand, please feel free to contact
us.

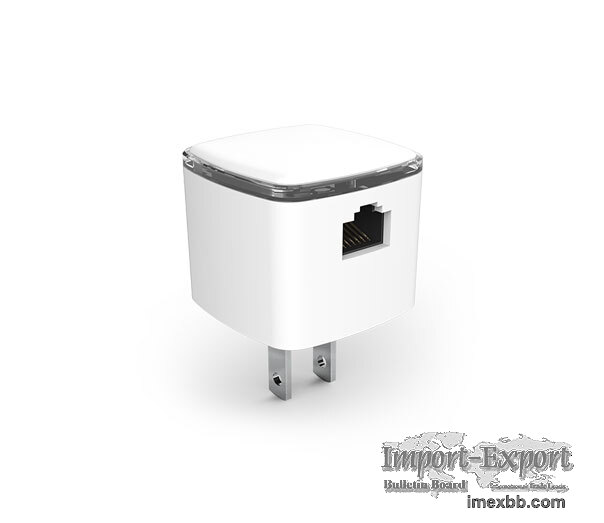

N300 wireless extender
WR33 n300 universal wifi extender is a wireless device independently developed
by our company. The smart n300 wifi range extender 5ghz has the characteristics
of signal expansion, strong compatibility, high speed, easy configuration and
installation, intelligent management, light and portable. Used in conjunction
with intelligent gateways or wireless routers, ultra link 300mbps wireless
range extender can expand the coverage of wireless signals, extend transmission
distance, and achieve wireless coverage of indoor signals without blind spots
and seamless roaming. It is suitable for small-sized families, cafes,
libraries, hotels and other multi-bedroom scenes.
Main Control
Name Parameter
Chip solution MTK7628KN
FLASH/Memory 8MB/1MB
Interface 1*10/100 RJ45
Power 110~240V plug
Indicator 1*status indicator light

Wireless
Name Parameter
Frequency range 2.4~2.4835GHz
Antenna Built-in antenna, 2T2R
Antenna gain 2* 2dbi
Rate 11b：1/2/5.5/11Mbps
11g：6/9/12/18/24/36/48/54Mbps
11n：Max up to 300Mbps
Channel 2.4G：1~13
Spread spectrum technology DSSS（Direct sequence spread spectrum）
Modulation 11b：CCK，QPSK，BPSK
11g：OFDM
11n：QPSK，BPSK，16-QAM，64-QAM
Media access protocol CSMA/CA with ACK
Encryption WPA-PSK/WPA2-PSK、WPA/WPA2
Transmit power 2.4G: 11b: 18dBm@ 1~11Mbps
11g:16dBm @ 6~54Mbps
11n: 15dBm@ MCS0~7
Receiving sensitivity 2.4G: 11b: <-84dbm@11Mbps；
11g: <-69dbm@ 54Mbps；
11n: HT20<-67dbm HT40: <-64dbm

Software
Name Parameter
Main function Relay / AP / routing three working modes
Basic function Wi-Fi setting
Network setting
System management; upgrade reset; reboot; modify password
First time Configuration automatic pop-up setup wizard; configure Wi-Fi
and network
Language English, follow-up support for many different languages

Environment
Name Parameter
Operating temperature: -10～50℃
Storage temperature: -40～70℃
Operating humidity: 5～90％(Non-condensing)
Storage humidity: 5～95％(Non-condensing)

Ordering Information
Product Name Product Model Product Description
Wi-Fi Repeater WR33-N300 1*10/100M adaptive Ethernet port, support 2.4G
Wi-Fi function, plastic casing, 110~240V plug

Minimum Order: 100 pieces
