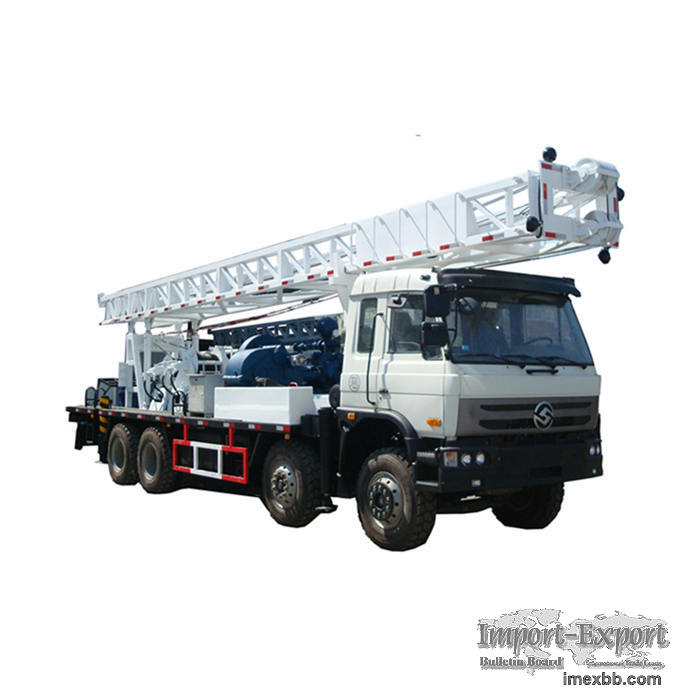

YMC-600 Truck Mounted Drilling Rig

YMC-600 Truck Mounted Drilling Rig
Product Description
The truck mounted drilling rigs series from Yingpai Drilling Machinery can
cover the drilling depth of 1000m-4000m and the maximum static load of 900kN-
2250kN. Drilling operations for shallow and medium-deep wells. Additionally,
rigs are available for arctic, desert and high altitude applications.
Features of YMC-600 Truck Mounted Drilling Rig
YMC-600 truck mounted drilling rig is designed by our engineers. It is a kind
of truck mounted and rotary drilling rig.
The YMC-600 truck mounted drilling rig adopts the special crane chassis of
brand CHANA TRUCK and the main drive system, the transfer case, gearbox,
double-winch unit, mud pump, turntable, drilling tower, feed mechanism are set
up on the chassis.
This truck mounted drilling rig is a rotary drilling rig with directional
circulation. It is equipped with 3NB-130 plunger pump which adopts the slurry
as the washing fluid and can drill on clay, sand and rock if it is equipped
with suitable drilling bit.
The power of this truck mounted drilling rig comes from the truck engine; the
rig has distribute implement and hydraulic system.
We can install the spare electric engine and clutch implement according to
client's requirement, so that the rig can work with diesel engine or electric
engine.
We set up a generator (MF) which is convenient to illuminate or work at night.
There are pressure device on the rig so it is high efficiency when the rig
drill on mud rock and on the weathering formation.
