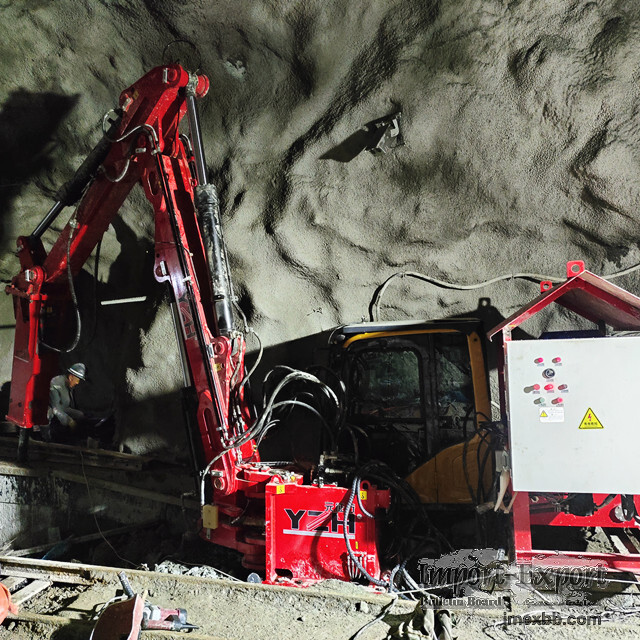

YZH BAN310 Breaker Boom System

Main parameters of YZH BAN310 Breaker Boom System：
Model No.：BAN310
Boom weight(without hammer)1411mm
Max.Horizontal Working radius5300mm
Max.vertical working radius3690mm
Min.vertical working radius1800mm
Max.Height2530mm
The Features of YZH BAN310 Breaker Boom System：

YZH's B-series Breaker Boom System (including the BAN310 model) boasts the
following key technical characteristics:

Structure and Swing: Featuring a classic straight-arm design, it achieves a
wide 170° swing range, delivering flexible working coverage.

Drive and Control The arm employs a core electro-hydraulic drive system,
offering both cab-mounted operation and remote control modes. This provides
versatile operational options to adapt to diverse work scenarios.

Core Components and Materials: Critical components like the hydraulic breaker
and chisel rod rely on imported parts, ensuring operational performance from
the source. Primary structural elements are extensively manufactured from high-
strength manganese steel and seamless steel pipes. Wear-prone critical areas
specifically utilize HARDOX wear-resistant steel, while pins undergo high-
temperature quenching treatment. This combination of robust materials and
processes collectively forges the arm's exceptional durability.

Regarding working range and power, the boom offers extensive horizontal
extension, adjustable between 4.88 meters and 20.4 meters. Its compatible
hydraulic power units range from 30 to 75 kW, providing ample power support for
diverse operational demands.

The Benefits of YZH BAN310 Breaker Boom System：

High Efficiency, Low Cost: Powered electrically, the Breaker Boom System incurs
operating costs of only approximately 10-20 yuan per hour, significantly lower
than equivalent crushing operations using excavators. It rapidly and
effectively clears material jams at crusher discharge points, drastically
reducing production downtime. Reports indicate this equipment can boost primary
crusher output by up to 20%.

Safety and Environmental Protection: Remote control operation keeps workers
away from hazardous areas, significantly enhancing workplace safety. The
equipment operates with low noise levels and, being electrically powered,
achieves zero emissions on-site, eliminating air pollution in the work
environment.

Durability: Benefiting from optimized structural design and premium materials
in critical components, the robotic arm exhibits exceptional overall
durability. It reliably withstands harsh conditions in mining and similar
environments while maintaining low long-term maintenance and servicing costs.

The Application of YZH BAN310 Breaker Boom System：

The YZH B-Series Breaker Boom System is widely deployed for secondary crushing
operations in the following scenarios:

Mines and Quarries: Typically installed at the discharge point of primary
crushing equipment like jaw crushers, specifically designed to rapidly break
down large ore blocks that could cause production line blockages.

Aggregate Plants & Metallurgical Facilities: Processes oversized materials that
fail to meet subsequent processing requirements within aggregate production
lines or metallurgical workshops.

Underground Mines: Addresses common blockages caused by large ore pieces at
chute openings or grid screens, ensuring uninterrupted underground production
flows.

Minimum Order: 1 sets
