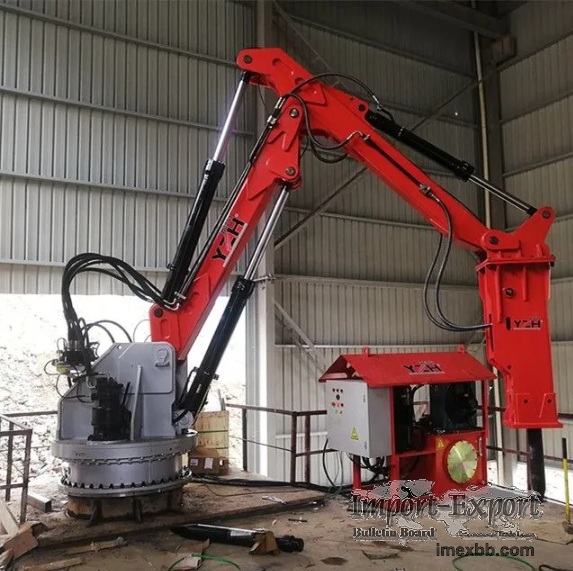

YZH BHB350 Stationary Type Rock Breaker Boom System

Main parameters of BHB350 Pedestal Rockbreaker:
Model No. BHB350
Boom weight(without hammer) 2994kg
Max.Horizontal Working radius 5890mm
Max.vertical working radius 3880mm
Min.vertical working radius 1790mm
Max.Height 3580mm

Stationary type rock breaker boom system is a machine designed to manipulate
large rocks, including reducing large rocks into smaller rocks. It is typically
used in the mining, quarrying and aggregate industries to remove oversize rocks
that are too large or too hard to be reduced in size by a crusher or grizzly.
Stationary type rock breaker boom system consists of four major components:
pedestal booms, hydraulic hammer, hydraulic power unit and operating control.

All elements are manufactured to stringent quality and safety standards. Our
experienced engineering team ensures that customers receive the best solution
for their needs, while also positioning the right equipment for optimal safety,
reliability, durability, and productivity.

CONTROL SYSTEM: 2IN1 Radio Remote Control、Cabin Control System、5G Optical
Fiber Teleoperation System

Use Case:
This robot arm is mainly used in the inlet or grizzly screen of all kinds of
mines and quarry crushers for secondary crushing of large materials. It can be
installed next to the hopper of primary crusher to crush the oversized stones
at the grizzly screen mouth, or next to the hopper mouth of truck hopper and
tipper, etc. It can effectively solve the problem of jamming and clogging in
crushing production line, and improve the output of the crusher in the initial
stage by up to 20%.

Purchase Notice:
Warranty period: 1 year
After sales service: During the warranty period, if there are quality issues,
we will be available on call
Transportation methods: Various transportation methods are accepted
Packaging method: Suitable for various types of transportation

Minimum Order: 1 sets
