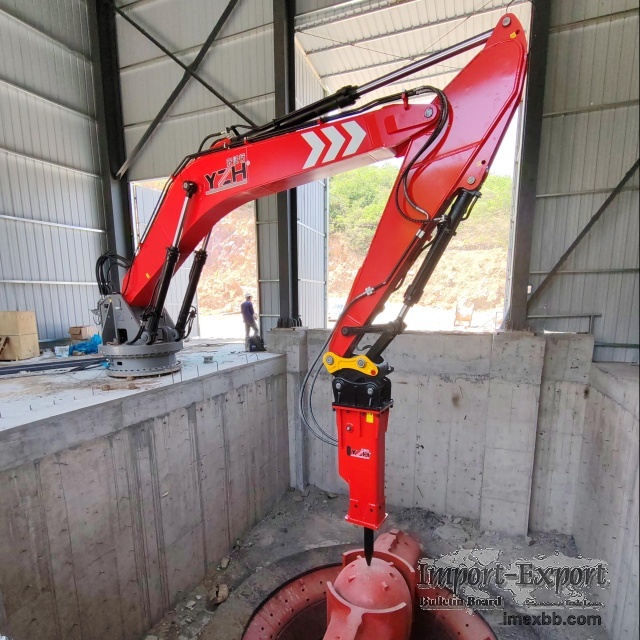

YZH WHEN1200 Stationary Pedestal Hydraulic Rockbreaker Boom System

Main parameters of WHEN1200 Pedestal Rockbreaker:
Model No. WHEN1200
Boom weight(without hammer) 16637kg
Max.Horizontal Working radius 14150mm
Max.vertical working radius 11784mm
Min.vertical working radius 2170mm
Max.Height 8400mm
Max.working depth 10295mm
Rotation 360°

Features：
Intelligent Multi-Mode Control: Supports cab operation, wireless/wired remote
control, and fiber optic + 5G remote video monitoring with a control range of
10-20km. Paired with a high-performance controller. It enables precise
positioning and flexible control, offering both wired and wireless dual-mode
operation.

Robust and Durable Structure: Features high-strength rectangular steel boom
beams, large-diameter cylinders, and reinforced pins. The slewing motor
incorporates buffer braking. Equipped with a high-performance shock absorption
system, core components utilize international brands, structural parts undergo
strength verification and aging treatment, and welding processes are mature.

High Adaptability: Modular design allows interchangeable attachments like
breakers and grabs. Suitable for open-pit/underground mining, metallurgy,
cement, and other applications. Capable of long-term operation in harsh
environments including corrosion, explosion-proof zones, and high altitudes.
Wide horizontal working range with selectable rotation angles.

Purchase Notice:
Warranty period: 1 year
After sales service: During the warranty period, if there are quality issues,
we will be available on call
Transportation methods: Various transportation methods are accepted
Packaging method: Suitable for various types of transportation

Minimum Order: 1 sets
