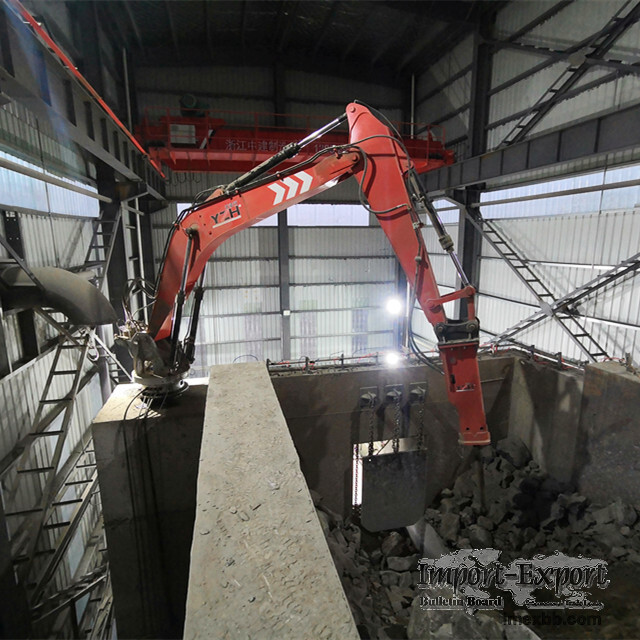

China Manufaturer Hydraulic Rockbreaker Boom System

In today's industrial field, the performance of mechanical equipment directly
affects production efficiency and cost control. The BHC630 Hydraulic
Rockbreaker Boom System has become the ideal choice for many enterprises with
its excellent performance characteristics and significant advantages, playing a
key role in many fields such as mines, quarries, sand and gravel aggregate
yards, metallurgical foundries, etc. The BHC630 Hydraulic Rockbreaker Boom
System has a strong working capacity and meets various working conditions.

Powerful working capacity to meet various working conditions
With a working radius of 9120mm, a vertical crushing radius of 7100mm, a
minimum vertical crushing radius of 2705mm and a working depth of 58,800mm, the
BHC630 stationary robot arm can easily cover a large working range, and can
meet the requirements of different site layouts and work tasks, whether it is
dealing with long-distance materials or working in deep and narrow spaces with
ease. Its working arm can rotate 360°, flexible and without dead angle, and
can quickly switch directions during operation to accurately crush materials at
all angles, which greatly improves the working efficiency and reduces the time
for moving and adjusting the equipment.


Advanced hydraulic system, stable and efficient operation
This Hydraulic Rockbreaker Boom System adopts high-pressure gear pump as the
main pump, with 37Kw, 380V, 50Hz main pump motor, the working pressure of the
system can be up to 25MPa, the flow rate of the system is 100L/min, which is
strong and powerful, providing stable and powerful power output for the
crushing operation, which can be easily coped with even when facing the hard
materials. The oil tank has a volume of 370L and is equipped with a three-stage
hydraulic oil filter (suction, high pressure and return oil filter), which
ensures that the hydraulic oil is clean, prolongs the service life of all
components of the hydraulic system, reduces the probability of failures, and
ensures the equipment to run stably for a long time.

Diversified intelligent control, convenient and safe operation
BHC630 is equipped with video monitoring and remote control function, and the
remote control distance can reach 10 - 20km, so the operator does not need to
be in the dangerous operation site, but can monitor the operation situation in
real time and accurately control the robotic arm from a remote location, which
greatly improves the safety of the operation, and reduces the labour intensity
of the workers and the risk of safety. At the same time, equipped with a high-
performance controller to achieve multi-parameter fusion and flexible control,
it can achieve fixed-point positioning, ensure operational precision and
improve crushing quality, whether it is fine work or large-scale crushing
tasks, can be perfectly completed.

Reliable quality, adaptable to harsh environments
The Hydraulic Rockbreaker Boom System  is equipped with high-performance shock
absorption system, which effectively reduces the damage of impact load on the
whole machine and infrastructure, and prolongs the service life of the
equipment; the core components are configured with international brands, which
are of reliable quality and high stability, and can meet the demand of
uninterrupted work. Moreover, it adopts modular design, can quickly adapt to
the different needs of customers, but also a multi-functional machine, equipped
with a variety of front-end tools, corrosion, explosion-proof and high-altitude
and other harsh environments in the long-term stability of the work, the scope
of adaptation is extremely wide, for a variety of complex working conditions
under the operation to provide a strong guarantee.

Energy saving and environmental protection, reduce operating costs
BHC630 adopts hydraulic vibration crusher, which has good mute effect and
reduces the influence of operation noise on the surrounding environment and
personnel; the motor drive is clean and energy-saving, and the energy cost is
more than 60% lower than that of the traditional diesel equipment, which is not
only in line with the requirements of environmental protection, but also saves
a lot of operation cost for the enterprise. At the same time, its high
maintainability, the failure rate than the traditional diesel equipment to
reduce 85%, reducing maintenance costs and downtime, and further improve the
economic efficiency of enterprises.

BHC630 Hydraulic Rockbreaker Boom System. has become a leader in the field of
industrial crushing with its powerful performance, intelligent control,
reliable quality, wide adaptability, and energy saving and environmental
protection and many other advantages, providing solid support for enterprises
to improve production efficiency, reduce costs and achieve sustainable
development.

Purchase Notice:
Warranty period: 1 year
After sales service: During the warranty period, if there are quality issues,
we will be available on call
Transportation methods: Various transportation methods are accepted
Packaging method: Suitable for various types of transportation
