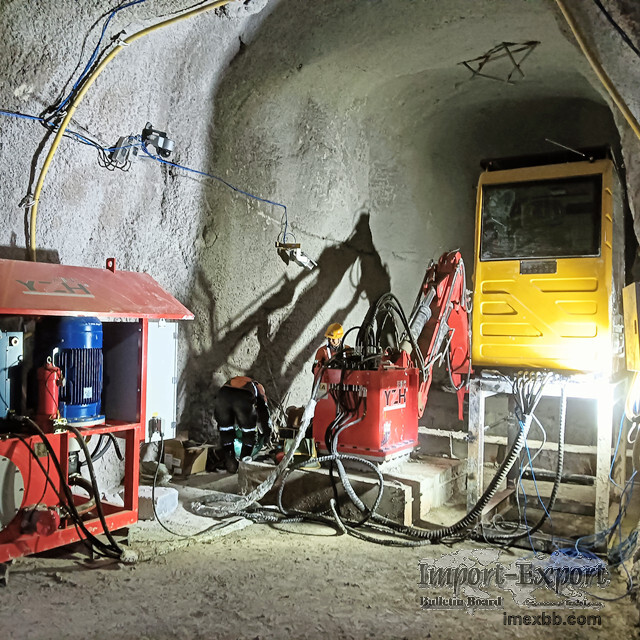

Fixed Type Rockbreaker Boom System

With the rapid development of industry, the demand for mechanical equipment is
becoming increasingly diversified. YZH Fixed Type Rockbreaker Boom System，
With its rich functionality and flexible configuration, it can meet the diverse
needs of various industrial scenarios.
Main parameters of BB450 Fixed Type Rockbreaker Boom System：
Model No. BB450
Boom weight(without hammer) 3296kg
Max horizontal working radius 7000mm
Max.vertical working radius 4950mm
Min.vertical working radius 2040mm
Max.Height 3780mm

There are multiple types of Fixed Type Rockbreaker Boom Systems to choose from,
which can be divided into straight arm Fixed Type Rockbreaker Boom Systems and
curved arm Fixed Type Rockbreaker Boom Systems based on the shape of the
robotic arm; According to the rotation angle, it can be divided into 170 °
rotation Fixed Type Rockbreaker Boom System and 360 ° rotation Fixed Type
Rockbreaker Boom System. Different types of Fixed Type Rockbreaker Boom Systems
are suitable for different working environments and job requirements, and
enterprises can choose according to their actual situation. The BB450 model
introduced today is a 170 degree rotating straight arm Fixed Type Rockbreaker
Boom System
In terms of control methods, it provides multiple options such as cabin
joystick control, wireless joystick control, fiber optic 5G remote control, and
can also be used in combination with multiple control methods. The cab handle
is suitable for close range operation, making it convenient for operators to
observe the real-time operation of the equipment; The wireless controller has
high flexibility in operation, and the operator can freely move and operate
within a certain range; Fiber optic 5G remote control enables remote real-time
control, allowing for precise control of equipment even when the operator is
not present, making it particularly suitable for hazardous environments or
remote work scenarios. Customers can choose according to their needs
The Fixed Type Rockbreaker Boom System has a wide range of applications and can
be used for secondary crushing in mining to solve the problem of large stone
blockage; In the sand and gravel aggregate plant, used for crushing operations
to improve production efficiency; In metallurgical smelters, foundries, etc.,
materials can be transported, grabbed, and other operations; In the cement
plant, assist in handling the transportation, processing, and other aspects of
raw materials and finished products. In addition, it can also be applied to
power plants, ports, and docks to assist in the unloading and handling of bulk
materials.

In order to better meet customer needs, YZH also provides customized services.
The company will tailor the most suitable fixed robotic arm for customers based
on their actual working conditions, such as the size of the workplace, the
characteristics of materials, the frequency of operations, and other factors.
At the same time, environmental factors such as temperature, humidity,
altitude, etc. will also be considered to ensure that the equipment can operate
stably in different environments.
