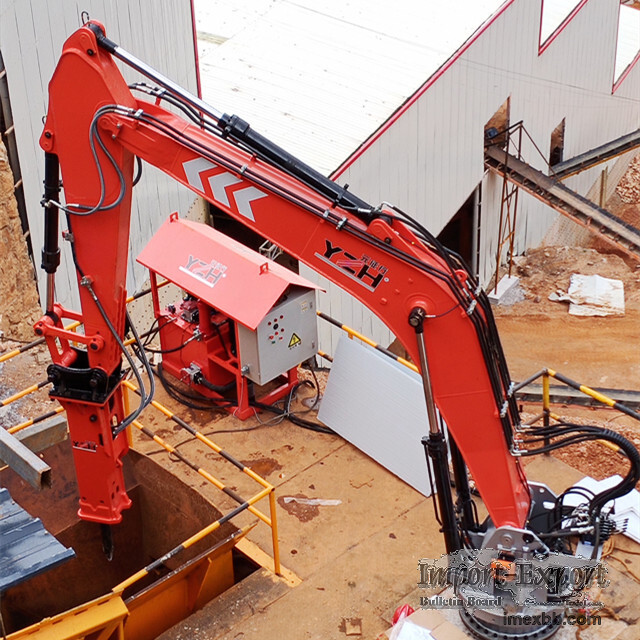

YZH breaker boom

In the industrial machinery sector, efficient, safe, and eco-friendly equipment
remains an essential requirement. YZH's WHB810 breaker boom, with its
outstanding performance and intelligent design, is emerging as a reliable asset
for mining, metallurgy, and related industries.
In modern industrial production, particularly in mining, metallurgical
smelting, and aggregate processing, secondary crushing and efficient handling
of large-sized materials remain critical processes. YZH specializes in fixed
crushing equipment, renowned for its high reliability and adaptability.
As one of its advanced offerings, the WHB810 breaker boom integrates electro-
hydraulic technology, intelligent control systems, and modular design
principles to enhance production efficiency, reduce energy consumption, and
ensure operational safety.
Main parameters of WHB810 breaker boom:
Model No. WHB810
Boom weight(without hammer) kg 3420
Max.Horizontal Working radius mm 10700
Max.vertical working radius mm 8150
Min.vertical working radius mm 2620
Max.Height mm 6230

The Scope of Work Diagram of WHB810 breaker boom:

The Features of WHB810breaker boom:
The WHA810 fixed mechanical arm integrates multiple advanced technologies, with
its design focused on intelligent operation, high-efficiency output, and
exceptional adaptability.
This equipment utilizes an electro-hydraulic drive system, delivering powerful
yet smooth operation. Its working arm offers a horizontal reach ranging from
4880 mm to 20400 mm, with a swing angle of 170° to 360°, providing an
extensive working range.
Flexible control options include both cab operation and remote control, with a
range extending up to 10-20 kilometers. This remote capability, combined with a
video monitoring system, significantly enhances operational safety and
convenience.
The robotic arm features a modular design compatible with various front-end
tools, including hydraulic breakers, hydraulic lotus claws, hydraulic shears,
and grapples, enabling functions such as crushing, shredding, scooping,
grabbing, digging, hooking, lifting, and scraping.
Core components utilize internationally renowned brands and incorporate a high-
performance shock absorption system. This effectively reduces impact loads on
the entire machine and its foundation structure, ensuring long-term stable
operation under harsh conditions.
The Benefits of the WHB810 Breaker Boom:
The WHB810 breaker boom offers advantages in energy efficiency, environmental
friendliness, high production efficiency, low maintenance costs, and safety
reliability.
Compared to traditional diesel equipment, its energy consumption costs can be
reduced by over 50%, reaching up to 60% in certain scenarios. This is primarily
due to its motor-driven design, which offers high energy utilization and zero
exhaust emissions, making it more environmentally friendly.
Equipment failure rates are reduced by over 80% compared to traditional
equipment, thanks to its optimized system design and reliable component
selection. Maintenance is simplified, significantly reducing downtime and
improving equipment utilization.
Operators can perform tasks via remote control, staying clear of hazardous work
zones and significantly enhancing workplace safety. The equipment also
incorporates multiple safety protection systems to ensure both equipment and
personnel safety.
The equipment has low requirements for working and operating environments. It
can function normally even in the harsh conditions of primary ore crushing—
where ventilation is poor and dust levels are high. Optional low-temperature
automatic heating and high-temperature automatic cooling systems are available
to adapt to various extreme environments.
The Application of WHB810 Breaker Boom:
The WHA810 Breaker Boom finds extensive application across multiple industrial
sectors, where its versatility and high adaptability make it the preferred
equipment for numerous enterprises.
Primary applications include: - Clearing material blockages at feed openings
and screen separators in crushers at open-pit and underground mines; -
Secondary crushing operations in mines and quarries; - Shell removal, brick
dismantling, ladle handling, and coarse crushing of large materials at smelting
plants for mobile ladles and metallurgical furnaces. It is also suitable for
sand and gravel aggregate processing, cement plants, power stations, ports, and
terminals.
YZH's engineering manipulators (including the WHB series) have been
successfully deployed in numerous domestic projects, earning high recognition
from users.
Its extensive application scenarios and proven success cases demonstrate that
this equipment delivers sustained improvements in production efficiency and
economic returns for enterprises.
