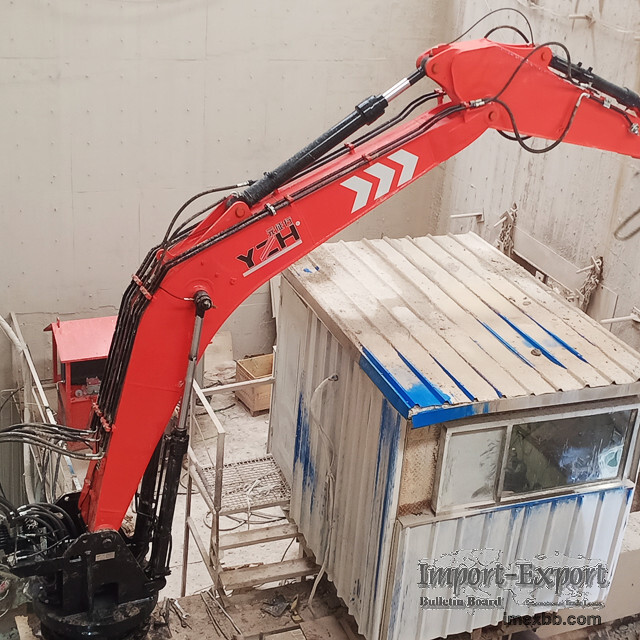

YZH Fixed Rockbreaker Boom System

The Fixed Rockbreaker Boom System of YZH WHD1250 is a machine mainly used for
secondary crushing of large materials such as ores, etc. The following is an
introduction of its performance, features, advantages, parameters and use
cases:

Parameters: hydraulic station power of 30-75kw, working arm weight (excluding
hammer) 12430mm, maximum working radius 14470mm, maximum vertical working
radius 12200mm, minimum vertical working radius 3470mm, maximum height 9010mm,
swing angle 360°.

Performance: It adopts electro-hydraulic drive and is equipped with imported
high-quality hydraulic crushing hammer with large crushing capacity. Smooth
operation, can be in the complex working conditions of the site continuous
operation, can effectively crush 400-1500 mm of large ores and other materials,
to assist the main crusher efficient feeding.

Features: with diversified intelligent control methods, support video
monitoring and remote control, remote control distance up to 10-20km. adopts
modular design, can quickly adapt to the different needs of customers, can also
be equipped with a variety of front-end tools, to achieve multi-functionality.
In addition, it can work stably for a long time in harsh environments such as
corrosion, explosion-proof and high altitude.

Advantages: safe and reliable, equipped with high-performance shock absorbing
system, which can reduce the damage of impact load on the whole machine and
infrastructure. Energy-saving and environmentally friendly, motor-driven
compared to traditional diesel equipment, energy costs reduced by more than
50%, and low noise of hydraulic vibration crushing. At the same time, high
maintenance, failure rate compared with traditional diesel equipment to reduce
80%, can be a full year without downtime maintenance, reducing maintenance
costs and time costs.

Use Case: It can be installed in high mountain mines at an altitude of 3,700
meters, and the operator can operate it through remote video in the office
below the mountain, and remotely control the mechanical arm to crush the large
stone blocks jammed in the mouth of the grizzly screen and gyratory crusher,
which effectively solves the clogging problem in the crushing process of the
mines, and guarantees the smoothness of the production process.
