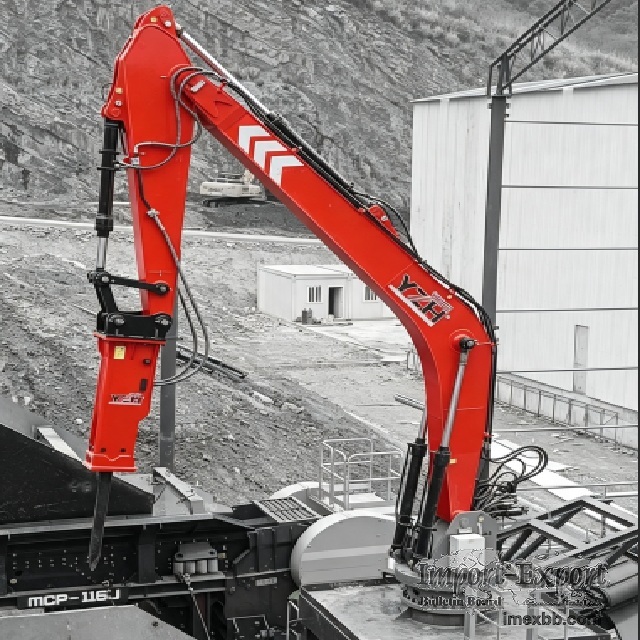

YZH WHB810 Heavy-Duty Stationary Hydraulic Rock Breaker Manipulator

Product Overview

The Heavy-Duty Stationary Hydraulic Rock Breaker Manipulator is an industrial-
grade fixed hydraulic breaking solution independently developed for harsh
mining, quarrying, and aggregate processing working conditions. Different from
traditional mobile breaking equipment, this stationary manipulator adopts a
fixed base mounting structure, matched with a high-power hydraulic drive system
and professional rock breaker hammer. It is specially used for secondary
crushing of bulk ore, rock block breaking, and fixed-point demolition of
construction waste.
Designed to replace manual breaking and frequent excavator auxiliary breaking
operations, the equipment solves the pain points of low efficiency, high safety
risk and serious wear of mobile equipment in traditional bulk material
crushing. With stable operation, strong breaking force and long continuous
working time, it is an essential high-efficiency supporting equipment for
mines, stone factories, concrete recycling plants and bulk material processing
stations.

Main parameters
Model No.：WHB810
Boom Weight (without hammer)：3519kg
Max. Horizontal working radius：10170mm
Max. Vertical working radius：8150mm
Min. Vertical working radius：2620mm
Max. Height：6230mm
Max. Working Depth：7660mm
Rotation：360°

Working Principle
This stationary hydraulic rock breaker manipulator takes the hydraulic pump
station as the power core, transmits stable hydraulic power to each hydraulic
cylinder of the mechanical arm and the rock breaker hammer. Through the
coordinated action of telescopic, rotating and lifting hydraulic cylinders, the
mechanical arm is accurately adjusted to the target breaking position. Relying
on the high-frequency impact force of the hydraulic rock breaker, it crushes
oversized bulk rocks and ores that cannot be fed into the crusher, so as to
realize standardized feeding of materials and ensure the continuous and
efficient operation of the crushing production line.

Product Features Summary
1.Heavy-duty industrial grade, suitable for long-term high-intensity heavy load
operation
2.Stationary fixed base, stable operation and strong impact resistance
3.Full hydraulic drive, stable power and high breaking efficiency
4.Flexible multi-dimensional operation, wide working coverage and no dead angle
5.Effectively protect excavators and crushing equipment, reduce production
costs
6.Simple structure, easy installation and low later maintenance cost

Customization & Service Support
We support personalized customization of working radius, breaking force, arm
length and installation mode according to customer's on-site working
conditions. All products are equipped with factory direct sales, professional
pre-sales technical guidance, on-site installation debugging guidance and
complete after-sales guarantee services, providing customers with one-stop
stationary hydraulic breaking system solutions.

Minimum Order: 1 sets
