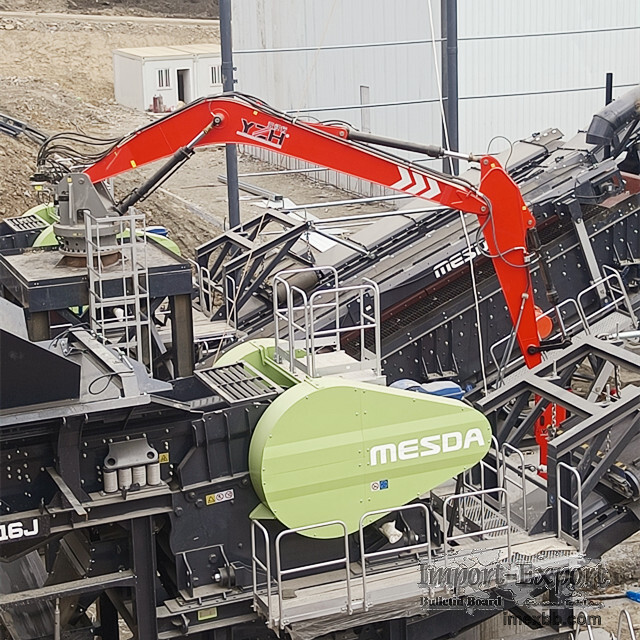

YZH WHC1030 Rockbreaker System

Main parameters of YZH WHC1030 Rockbreaker System:
Model No. WHC1030
Boom weight(without hammer) 8715KG
Max.Horizontal Working radius 12606MM
Max.vertical working radius 10256MM
Min.vertical working radius 2898MM
Max.Height 7200MM

The Features of  YZH WHC1030 Rockbreaker System:
Powerful Crushing Capability: Equipped with a high-quality hydraulic breaker
delivering strong impact force, effectively breaking rocks and materials of
various hardness levels. The robust arm beam structure is constructed from
rectangular steel, utilizing large-diameter cylinders and reinforced pins to
ensure the mechanical arm possesses formidable crushing power.
Flexible Operational Performance: Swing angles reach up to 170°/360°,
offering a wide working range for operations in larger spaces. The rotating
mount incorporates high-speed low-altitude gearing and responsive braking
systems, enabling rapid, precise, and accurate equipment reactions.
Intelligent Control System: Utilizes flexible control for precise positioning.
Features video monitoring + remote control functionality with diverse operation
modes, achieving control distances of 10-20km. Equipped with high-protection
controllers for multi-parameter integration.
High Adaptability: Compatible with various front-end tools like hydraulic lotus
claws and hydraulic cutters for multi-functional operation. Modular design
rapidly adapts to diverse customer requirements, enabling long-term operation
in harsh environments including corrosion, explosion-proof zones, and high
altitudes.
The  Benefits of  YZH WHC1030 Rockbreaker System:
Energy Efficiency & Environmental Protection: Utilizes electro-hydraulic drive
with clean, energy-efficient motor operation. Energy costs reduced by over 60%
compared to traditional diesel equipment, with zero emissions meeting
environmental standards.
Safety and Reliability: Intelligent control enables remote operation,
eliminating worker exposure to hazardous environments and enhancing workplace
safety while reducing risks. A high-performance shock absorption system
minimizes impact loads on the machine and foundation. New simulation-optimized
design ensures rational layout, high safety factors, and uninterrupted
operation.
Low Operating Costs: Maintenance expenses are minimal, with failure rates
reduced by 85% compared to conventional diesel equipment. It minimizes crusher
wear, ensuring healthier operation and extended service life. Additionally,
fuel consumption is only one-sixth that of excavators with equivalent power
output.
High Production Efficiency: Significantly reduces downtime caused by material
jams, enhancing overall production line efficiency. It also boosts the output
of primary crushers by up to 20%, increasing production capacity.
The Application of  YZH WHC1030 Rockbreaker System:
Shen Dong Coal Customized Robotic Arm: Shen Dong Coal Group's fixed crushing
robotic arm employs electro-hydraulic control for intelligent remote operation.
Its one-touch extension/retraction functionality enables convenient and safe
crushing, supporting Shen Dong Coal's goal of establishing a world-class
benchmark in the coal industry.
Multiple Custom Orders from Hongshi Cement Group: Hongshi Cement Group has
repeatedly customized Yuanzhengxing fixed excavation robotic arms for crushing
operations in cement production. This has enhanced safety, productivity, and
profitability in crushing tasks while significantly improving the construction
environment under special working conditions.

Minimum Order: 1 sets
