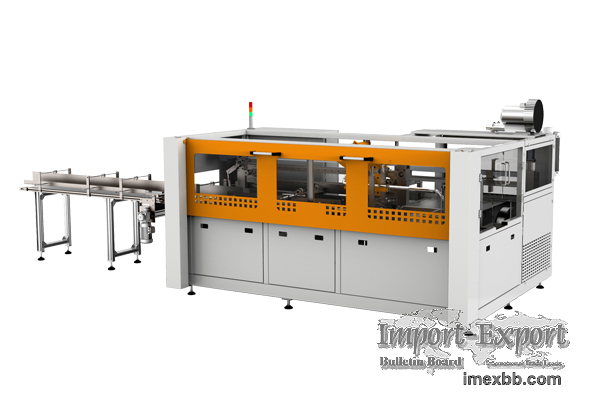

ZB680F Roll Tissue Bundler

This kind of napkin bundler is suitable for packing tissue rolls in bundle.

Specification of ZB680F Bundler
Model number ZB680F
Average Speed 20-25bundles/min
Packing type 4.6.8.10.12 rolls(single layer and double layer)
Maximum bundle bag Length 900mm
Finished bundle max length 690mm
Finished bundle Width 160～260mm
Finished bundle height 90～125mm
Bag material PE Pre-made bag
Packing film thickness 40-65μm
Pre-made bag stock 2 bag stocks, automatically change and every stock
capacity is 300 pieces bag
Machine size 8640×2830×1800mm（L×W×H, include the tidying line and
outlet line）
Whole power 14.8kw
Power supply 380V 50HZ(if different,pls specify)
Air consuming 0.5～0.7Mpa ,air usage: 350L/min
Weight Around 4000kg
Noise ≤80 dB

Soontrue packaging machine series digests, absorbs and masters the
international advanced processing technology and automated packaging machinery
technology. At the same time, we have our own unique technology and advantages.

Soontrue packaging machine is one of the leading global suppliers devoted to
the R&D, manufacture and service of packing machinery. We provide paper bundle
packing machines, bundle packaging machine, toilet paper packing machine and
etc. If you are interested in our products, leave us a message and get the
tissue paper packing machine price.

Minimum Order: 1 sets
