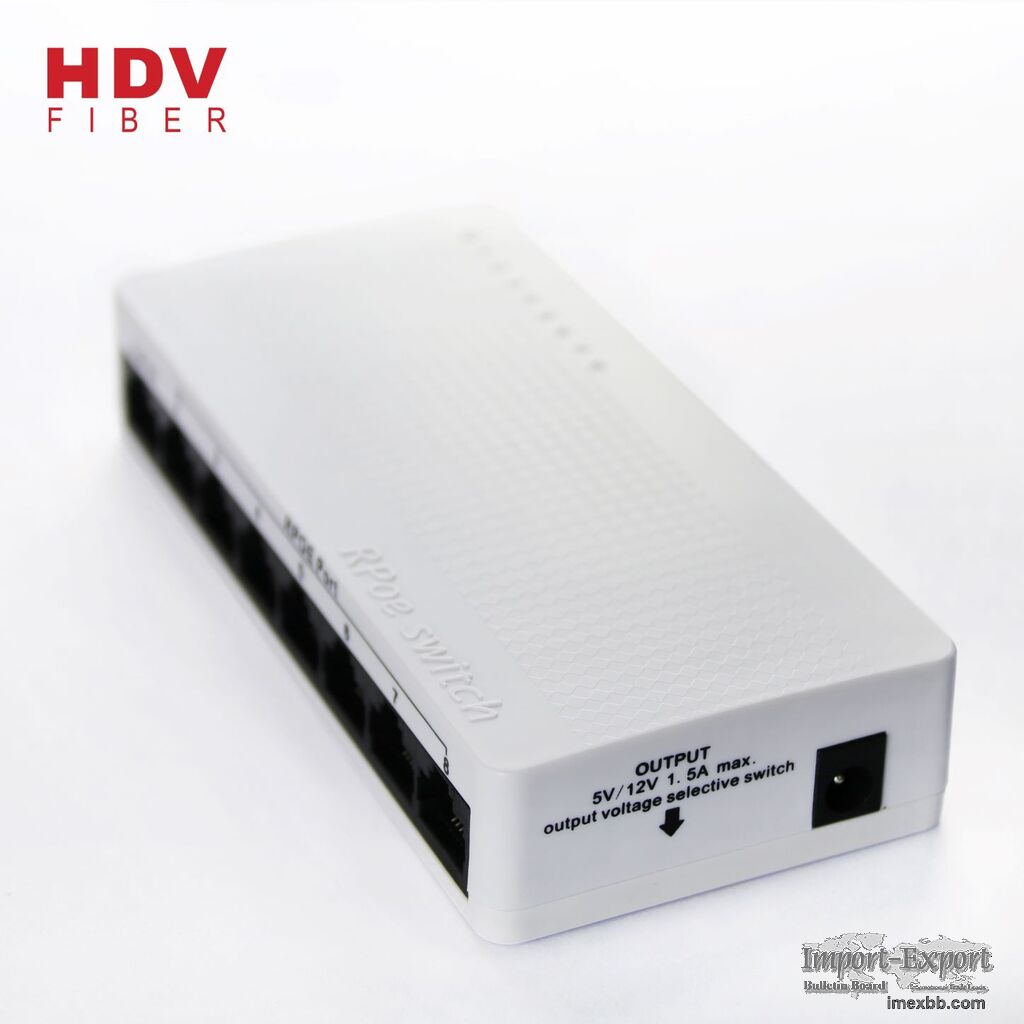

100M 8 port reverse power supply RPOE POE switch Reverse poe switch

Short Description:
RPOE switch has intelligent device Power management features solving a
major problem of powering the device for internet service provider. This
switch can be powered using remote power from customer using specially
designed POE injector or any standard POE injector(24v DC,0.75amp).This
eliminates the needs of arranging power at building top (ups not require/No
need to pay more money to customer or society).This saves lot of money of
ISPs and improves uninterrupted service to the customer.

PRODUCT FEATURE:

REVERSE POE TECHNOLOGY:8 Port 10/100 Reverse POE switch which has latest
generation of fast Ethernet reverse POE switching technology. It contains
7*10/100 base T Reverse Poe ports (RPOE),1*10/100 Base date Uplink Port&12V
DC out for Powering ONU.
Supports Auto-Negotiation: Each of the ports automatically detect whether
connected network devices are running at 10Mbps or 100Mbps and half-duplex
or full-duplex mode, and adjusts the speed and mode accordingly ensuring
easy and hassle-free operation.
Supports Non-blocking Wire Speed: The switch forwards and receives traffic
seamlessly with its Non-blocking wire- speed. Every port of the Switch
supports speeds up to 200Mbps in full-duplex mode simultaneously, providing
full wire speed to connected devices and allowing you to run a high speed
network smoothly.
Cascading support: switches can be cascaded for more users per Building (Up
to 1 Main+3 switches )
Port base Isolation u/Hardware VLAN: The feature of Port Isolation is
implemented in this unit where in the Ethernet Date of the Uplink Port can
be transferred to any of the Downlink ports but the individual Downlink
ports cannot communicate with each other.
Over voltage Protection: Over voltage Protection is provided on each date
port to eliminate damage due to connection of higher voltage(Higher than
24V DC. Up to 80V DC). By mistake if user connect more than 24V POE
injector then switch will goes on power off mode and will start working
again once this high voltage source is removed.
Over current Protection: We have provided over current protection on each
port to prevent damage to the switch in case of high current flowing due to
any reason. This is provided using Resettable Fuse to facilitate easy
maintenance and avoiding frequent change of blown fuse.

PRODUCT APPLICATION:
7*10/100 Base T Reverse POE Ports(RPOE) & 1*10/100 Base T Uplink Port & 12V
DC Power out for Powering ONU

Minimum Order: 1 pieces
