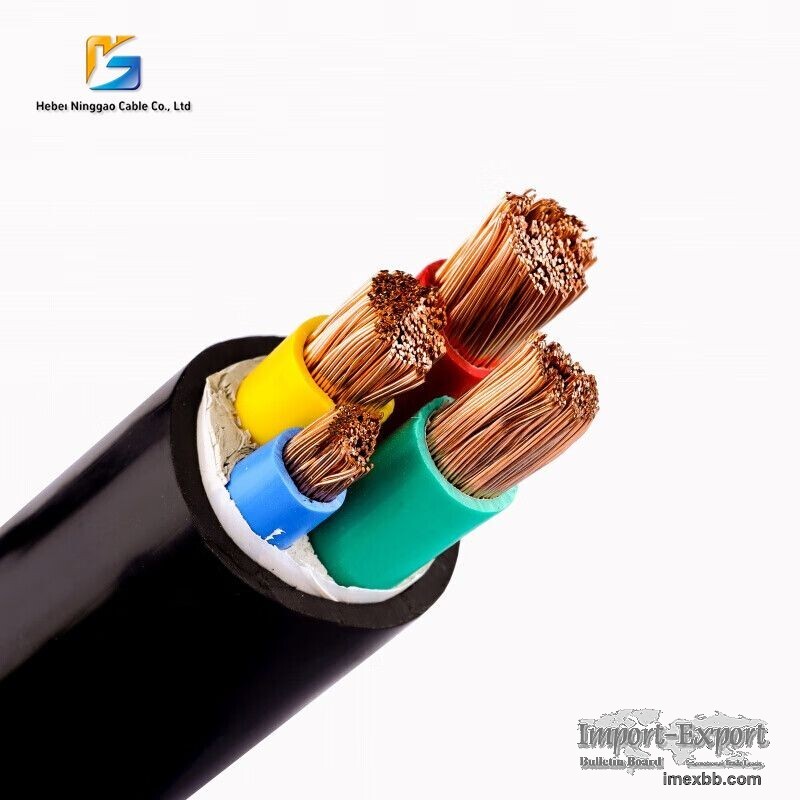

0.6/1kV Flexible PVC Insulated Power Cable (VVR)

0.6/1kV Flexible PVC Insulated Power Cable (VVR)
This is a flexible low-voltage power cable, applicable for fixed/lightly
movable installations in indoor, cable trench or equipment wiring scenarios. It
features high flexibility (easy for bending & routing), good insulation
performance and cost-effectiveness, suitable for general power transmission.
The Flexible PVC Insulated Power Cable is designed for efficient and safe low-
voltage power distribution in fixed installation and flexible wiring
applications. Featuring fine-stranded copper conductors and high-quality PVC
insulation, this Low Voltage Power Cable offers excellent flexibility, easy
installation, and reliable electrical performance. It is widely used in
construction projects, industrial wiring systems, and distribution panels.
Operating Temperature: Normal operation (max. 70°C); Short-circuit (max.
160°C, duration 5 seconds).
Voltage: AC 0.6/1kV.
Test Standard: Withstand AC3.0kV voltage test for 5 minutes (no breakdown).
Bending Radius: (Flexible structure) All cross-sections: 24x OD (short-term
bending) / 26x OD (long-term use).
Materials: Multi-strand fine-twisted flexible copper conductor + PVC insulation
+ PVC sheath (insulation & protection).
Key Electrical & Mechanical Advantages:
- High Flexibility for Easy Installation: Fine-stranded copper conductors allow
for effortless bending and routing, making it ideal for complex wiring
environments and tight spaces.
- Stable Electrical Performance: High-grade PVC insulation ensures reliable
dielectric strength and consistent power transmission in low-voltage systems.
- Enhanced Safety Features: Optional FR-PVC (Flame Retardant) and LSZH (Low
Smoke Zero Halogen) types significantly improve safety in indoor and building
applications.
- Cost-Effective Solution: Provides a more economical alternative for standard
electrical installations compared to XLPE-insulated cables.
