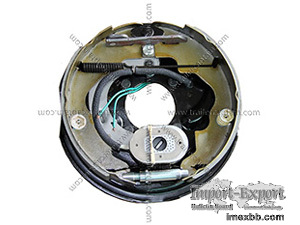

10" x 2 1/4" Trailer Off Road Electric Brake Assembly

√

Trailer Backing Plate

√

Electric Drum Brake

√

With Parking Brake

√

Trailer Brake Assembly

√

Off Road Electric Brakes

√

With Handbrake

√

1400 KG – 1600 KG Axle

√

10” Brake Drum

10" x 2 1/4" offroad trailer electric brake assembly with handbrake is
specifically designed for extreme rugged conditions in Australia. The 10”
electric backing plate mounts on standard 4 bolt flange, and it is used to work
with slimline and parallel 10” brake drums. The obvious difference between off
road electric brakes and electric brakes with handbrake is the magnet, off road
magnet has a high-tech plastic core and that will reduce vibration, wear and
high temperature damage, in order to prolong the life of electric brakes.

Features

l 10” x 2 1/4” Trailer Drum Brakes are recommend replacing AL-KO off road
electric brakes to the caravans, campers or trailers.

l E-coated backing plates resist wear and corrosion.

l Periodic manual adjustment required.

l Fully assembled and easily installation, mostly used for Australian offroad
trailers.

l Electric backing plates are an extremely efficient and reliable braking
system that require minimum maintenance.

l Needs only an electric brake controller to work.

l High grade brake linings provide smooth efficient braking.

Specifications

Ø Dimension: 10 inch x 2.25 inch

Ø Axle Capability: 1400 kg (13”-14” wheel) to 1600 kg (15”-16” wheel) Axle

Ø Mounting Flange Bolt Pattern: 4 bolts

Ø Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition

² 10” x 2 1/4” Electric Brake Shoe Set x 1

² E-coat Backing Plate x 1

² Magnet Lever x 1

² Green Wire Offroad Magnet x 1

² Brake Adjuster x 1

² Long Spring x 1

² Short Spring x 1

Minimum Order: 300 pieces
