10GE XGS-PON GPON ONU 1GE 2VOIP ZC-512N Optical Network Terminal







Introduction



ZC-512N is a XGS-PON Optical Network Terminal(HGU) designed for FTTH scenario.
It supports L3 function to help subscriber construct intelligent home network.
It provides subscribers rich, colorful, individualized, convenient and
comfortable services including voice(VoIP), video (IPTV) and high speed
internet access.

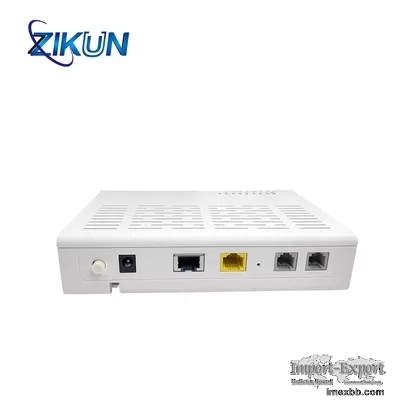

10GE XGS PON GPON ONU 1GE 2VOIP 12V DC 1A Optical Network Terminal 0





Specifications



GPON interface(NNI):1 x XGS-PON interface
Optical port CLass N2 optical system
Optical connector SC/APC
Receiving Sensitivity -28dBm
Overload optical power -8 dBm
Transmitting Optical Power 0.5~5dBm
Transmit rate 9.953Gbit/s downstream; 9.953Gbps upstream
Wavelength Receiving(DOWN):1577nm；Transmitting(UP):1270nm
Authentication SN/ Password/LOID /LOID+Password authentication




























User Network Interface(UNI):1*10GE+1GE+2VoIP(option)



Ethernet Port



• Ethernet port-based VLAN tags and tag removal
• VLAN transparent and aggregation
• MAC address learning
• Q-in-Q
• Auto-adaptive 10 Mbit/s, 100 Mbit/s ,1000 Mbit/s or 10000 Mbit/s
POTS Port

(option)

• SIP/H.248
• Call waiting, Inconditional Call Forward, Call Forward if Busy,Call Forward
if no reply and Three-party calls.
• G.711A/U, G.729 and G.722 encoding/decoding
• SDP protocol (RFC 2327 and RFC 4566)
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP/H.248 protocol)
Product Function
GPON • ITU-T G.9807.1
• ITU-T G.988
• 32 TCONTs /256GEM ports
• 8 Egress queues per TCONT at least
• VLAN or VLAN plus priority gem mapping mode
• Performance monitoring: eth/Gem port
• Dying gasp
Layer 2 Features • MAC learning (SVL)/aging
• Support max frame length to 1518 bytes
• VLAN tagging for untagged packets
• Support VLAN 1-4094
• VLAN transparent/translation



Layer 3 Features • PPPoE/Static IP/DHCP/Bridge
• NAT
• Port forwarding
• ALG, UPnP
• DDNS/DNS server/DNS client
• IPv6/IPv4 dual stack,and DS-Lite
• Static/Default routes
• Multiple services on one WAN port
• RIPv2 with passive mode
Multicast • IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376)
• IGMP snooping and IGMP Proxy
• MLD v1/v2
Qos • Support 8 Queues with Strict Priority
• Ethernet port rate limitation
• SP/WRR/SP+WRR
• Service flow classification
Management • OMCI/TR069
• Web UI(Http by LAN and WAN)
• Telnet(Telnet by LAN and WAN)
• SSH management with CLI commands
• Dual-system software backup and rollback










Physical Performance



Dimensions ( W x Dx H) 17.2CM*11.5CM*4CM
Weight About 400g
Working temperature 0°C ~ 45°C
Working humidity 5% RH to 95% RH (non-condensing)
Power adapter input 100–240 V AC, 50 / 60 Hz
System power supply 12V DC, 1 A
Power consumption <10W
