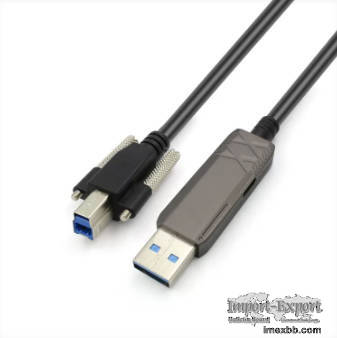

10m USB3.2 Gen2 Active Optical Cable(AOC),AM to BM,10Gbps

USB 3.2 Gen2 AOC-Active Optical Cable, Type-A Male(AM) to Type-B Male(BM), Hybrid
10Gbps, Custom length up to 60meters(200feet)
The FUAB-3203 Series USB 3.2 Gen2 Active Optical Cable (USB AOC)—also known as USB
3.0 Fiber Optic Cable, Optical USB Cable, or Hybrid USB AOC—is designed to meet
SuperSpeed USB 3.x specifications, ensuring full compatibility with existing USB
hosts, hubs, and devices. With its ultra-thin, lightweight design and long-distance
transmission capability, this USB3 active optical cable provides a reliable plug-
and-play solution without signal loss nor EMI interference.

Perfect for high-performance applications such as machine vision cameras, 4K/8K
video capture, medical imaging, digital signage, storage devices, and HD
surveillance, the FUAB-3203 USB AOC helps break distance barriers while delivering
stable data transfer at 10Gbps. It is the ideal choice for industries requiring
long-reach, high-speed, and interference-free USB connectivity.

Highlight Features:

High Bandwidth: complied with the latest USB3 gen2 standards, up to 10Gbps super
speed
Backward Compatible: Supports USB 3.0 @ 5Gbps (not compatible with USB 2.0/1.1)
Long length Transmission: Delivers lossles signals up to 60 meters (200ft)
Power Supply: Support 5V 900mA max to the remote device
Easy Installation: Plug and play, unidirectional design
High Performance: 850nm VCSEL transmitter and PIN photo-detector receiver
Universal Compatability: Supports all major operating systems including Windows,
Mac OS, and Linux
Durable Construction: Zinc-alloy housing, corrosion-resistant gold-plated
connectors
EMI Resistance: High resistance to electromagnetic interference, ensuring a safe,
radiation-free environment
Customizable: Up to 60m maximum length, custom length, logo, and packaging
available
Applications:

Industrial Control
Digital Signage
Home Network Integration
Medical Device Connectivity
KVM Extension
Remote Desktop USB 3.0 Connections
Security: web camera, access control
USB 3.0 Devices Sharing: print, scan, storage
Frequently Asked Questions:

Q: Are USB 3.2 Active Fiber Optical Cables by AOCFIBERLINK compatible with all USB
devices?

A: Though no USB standard currently exists for optical cables, USB 3.x Active Fiber
Optical Cables by AOCFIBERLINK have been successfully tested with more than a
hundred devices spanning all major consumer operating systems. In general, you can
expect USB 3.x Active Fiber Optical Cables by AOCFIBERLINK to work with most self-
powered USB 3.2/3.0 compliant device.

Q: Can I charge my portable device (like iPhone or iPad) with USB 3.x Active Fiber
Optical Cables by AOCFIBERLINK ?

A: USB 3.x Active Fiber Optical Cables by AOCFIBERLINK are designed to be used with
self-powered peripherals only. No significant power is available after powering its
internal opto-electronics. A self-powered USB 3.2/3.0 hub can always be used at the
peripheral (B-side) to provide power if desired.

Warranty: 2-Year Warranty

Minimum Order: 10 pieces
