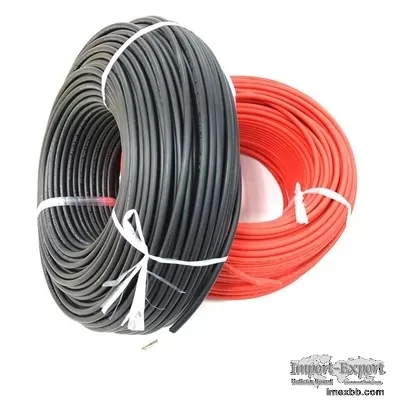

1KV PV Solar Cable 4mm UV Resistance XLPE Insulated Wire UL Approved

Product Description
XLPE UV Resistance Fire Resistance Low Voltage TUV PV1 F 4mm Solar Battery
Cable Photovoltaic Power Wire PV Solar Cable

Product Features:

The 0.6/1KV solar cable is a tinned copper conductor, XLPO insulation, and LSZH
sheath, which is designed for connecting photovoltaic system components inside
and outside of buildings and equipment with high mechanical requirements and
extreme weather conditions. It has the characteristics of UV resistance, wears
resistance, and aging resistance, and the service life is more than 25 years.

Description:



lDual wall insulation, Electron beam cross-linked

Excellent resistance to U.V., water, ozone, fluids, salt, general weathering

lExcellent resistance to abrasion

Halogen free, flame retardant, low toxicity

Excellent flexibility and stripping performance

High current carrying capacity

TUV and UL approved


Product Data

No. Of cores x Construction
(mm2)
Conductor Construction
(n / mm)
Conductor No./mm
Insul.
Thick. (mm)
Current Aarring Capacity (A)
1x1.5 30/0.25 1.58 4.9 30
1x2.5 50/0.256 2.06 5.45 41
1x4.0 56/0.3 2.58 6.15 55
1x6 84/0.3
3.15
7.15 70
1x10 142/0.3 4.0 9.05 98
1x16 228/0.3 5.7 10.2 132
1x25 361/0.3 6.8 12.0 176
1x35 494/0.3 8.8 13.8 218
1x50 418/0.39 10.0 16.0 280
1x70 589/0.39 11.8 18.4 350
1x95 798/0.39 13.8 21.3 410
