1mA-1200A 2MHz Oscilloscope AC Current Clamp probe S50 GFUVE Multi-ratio

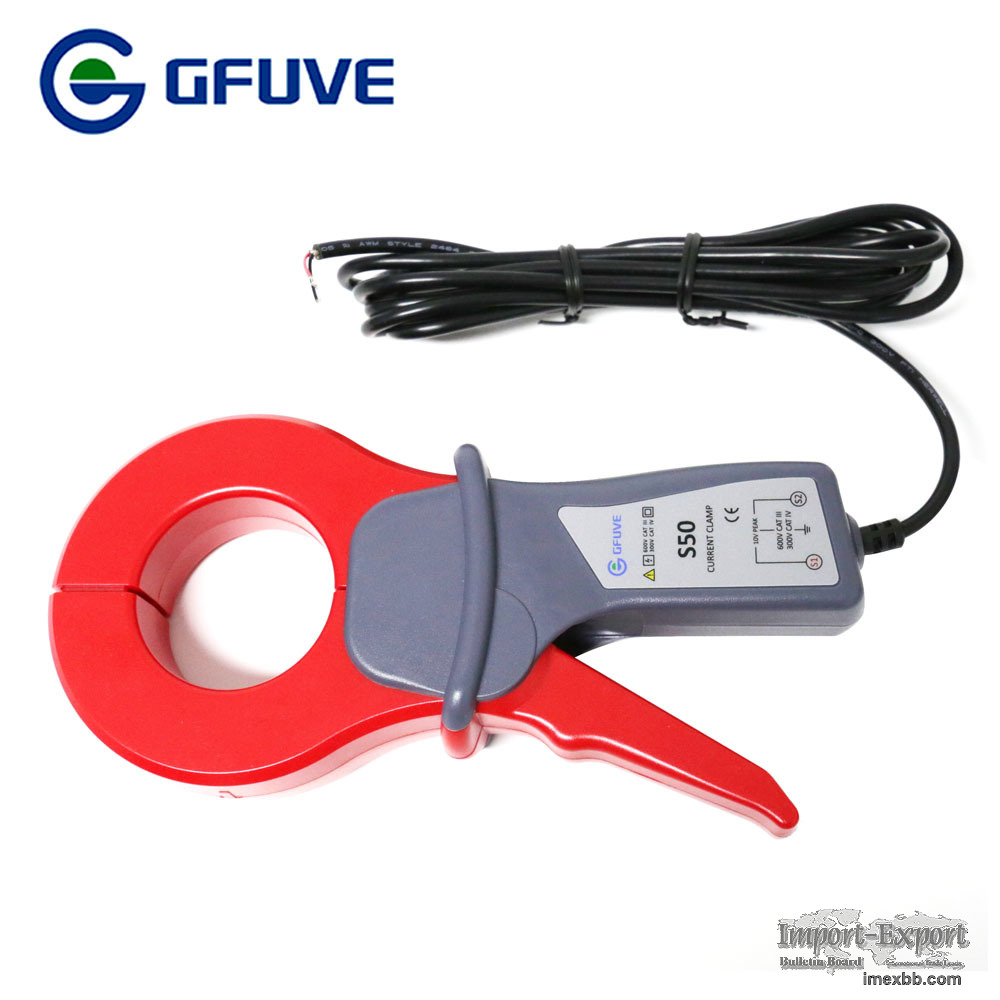

The round jaw design on the S50 Series AC current clamp on CT along with the high
content permalloy core makes them well suited for power quality applications where
high accuracy and low phase shift along with wide frequency are important from
10Hz to 10MHz. Measurement range is 1mA to 1200A. The S50 clamp on ct is a general
purpose 1200A AC current clamp designed for use with DMMs & BNC, power loggers and
energy meter calibration instruments that have a current input. It has a 1000:1
ratio and output of 1mA per amp or 1mV per amp measured in the jaw. The S50 clamp
on CT has an integral 2.5m lead terminated. The rounded jaw design on this current
clamp makes it well-suited for power applications where high accuracy 0.1% and low
phase shift and wide frequency response are important.

Electrical parameters
Ratio: 1000: 1 , 2000:1, 1000:5 (customized)
Accuracy class: 0.1%, 0.2%, 0.5%
Primary current: 0 - 500A AC and 0-1000A AC
Signal output: 1mV/A, 1mA/A
Secondary voltage: 0 - 0.5V AC and 0 - 1V AC;
Secondary current: 0-1A or 0-5A AC
Max. Cont. Input current: 1200A
Load capacity: ≤20Ω, standard 4Ω
Over voltage category: CAT III 600V
Frequency range: 10Hz-10MHz
Dielectric strength: 3KV 50Hz/60Hz at 1minute
Temperature range: -40°C to +55°C
Output: 2.5 meter cable with D01 or BNC connector
Max. voltage not insulated conductors: 600 V
Standard: EN 61010-1, EN 61010-2-032, EN 61010-2-031
IEC60044-1, & IEC61869-2, 600V CAT III
Installation: clamp type
Range: 10A, 100A, 1000A optional
Output mode: lead output(2.5m)
Connector: BNC, 4mm banana, signal cable(2 cores),customized
Accuracy (1000A Range)
0-10A: ≤0.5%
10-100: ≤0.2%
10-1200A: ≤0.1%
Phase Shift(1000A Range)
0-10A: ≤0.5°
10-100: ≤0.2°
10-1200A: ≤0.1°

Mechanical parameters
Dimensions (L x W x H) (mm): 105 x 218 x 30
Weight (g): 650
Holding wire diameter (mm): φ52
Max. jaw opening (mm): 52
Jaw color: Red & Grey
Material: PC+ABS, UL94 V0

Minimum Order: 3 pieces
