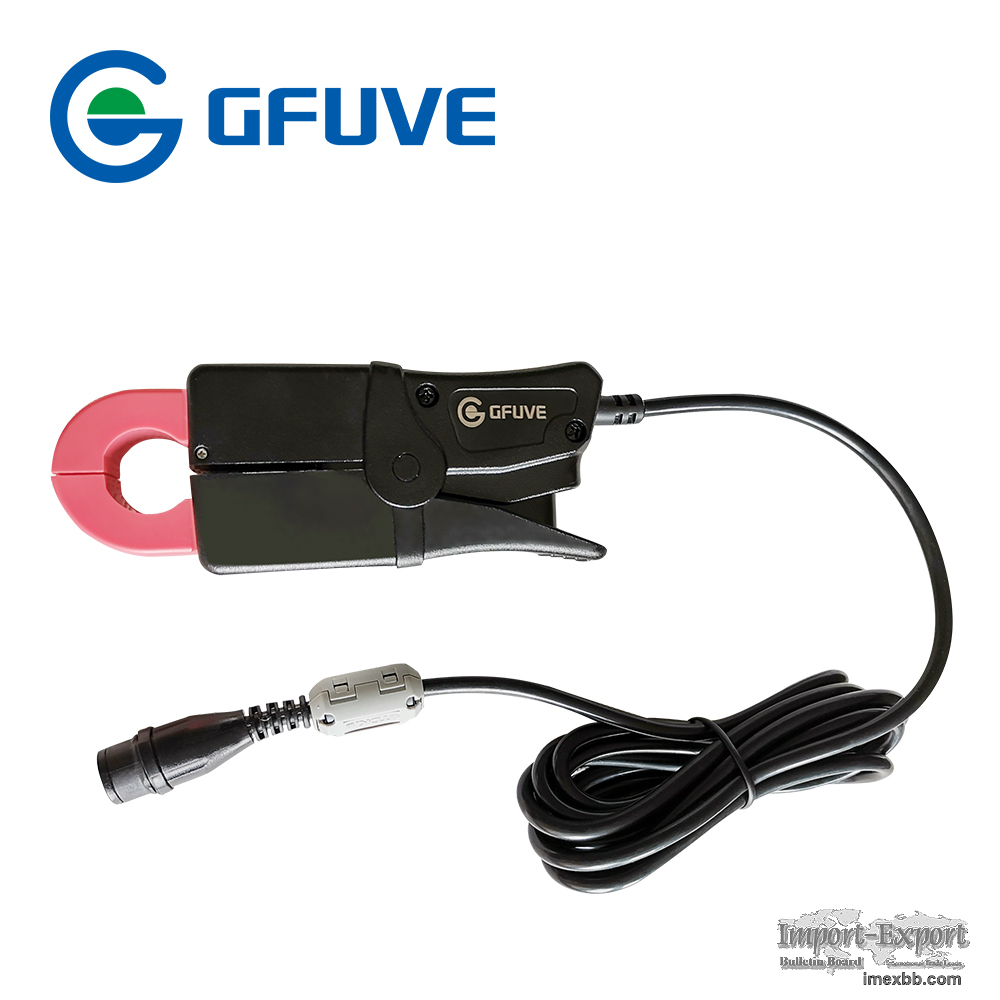

1mA-200A AC Double ratio Voltage output Current clamp/ probe GFUVE P18

The round jaw design on the P18 Series double ratio AC current clamp along with
the high content permalloy core makes them well suited for power quality
applications where high accuracy and low phase shift along with wide frequency are
important. Measurement range is 1mA to 200A.
The P18 AC current clamp is a general purpose 200A AC current clamp ct designed
for use with DMMs, power loggers and energy meter calibration instruments that
have a current input. It has a 1000:1 ratio and output of 1mA per amp or 1mV per
amp measured in the jaw. The P18 clamp ct has an integral 2.5m lead terminated.
The rounded jaw design on this current clamp makes it well-suited for power
applications where high accuracy 0.1% and low phase shift and wide frequency
response are important.

FEATURES
■ UL, CE mark;
■ Holding wire diameter: φ18mm;
■ Frequency 10Hz-2MHz Bandwidth;
■ High times harmonic measurement;
■ Conforms to EN 61010, 600V CAT III;
■ Measurement range of 1mA to 200A AC;
■ Low phase shift for power measurement;
■ High content nickel metal permalloy core;
■ Improved ergonomic design & easy operation;
■ High precision 0.1% for current measurement;
■ Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic
meters;


Electrical parameters
Ratio: 1000: 1 or 2000:1 (customized)
Accuracy class: 0.1%, 0.2%
Primary current: 0 - 10A AC and 0-200A AC
Signal output: 10A (100mV/A) and 100A (200A)(10mV/A) with Switch
Secondary voltage: 0 - 1V AC, 0 - 2V AC, 0 - 5V AC, 0 - 10V AC
Secondary current: 0 - 100mA AC and 0 - 200mA AC
Max. Cont. Input current: 240A
Load capacity: ≤20Ω , Standard 4Ω
Over voltage category: CAT III 600V
Frequency range: 10Hz-2MHz
Dielectric strength: 3KV 50Hz/60Hz at 1minute
Temperature range: -40°C to +55°C
Output: 2.5 meter cable with D01 or BNC connector, 4mm banana
Max. voltage not insulated conductors: 600 V
Ratio: single winding, or double winding
Standard: EN 61010-1, EN 61010-2-032, EN 61010-2-031
IEC60044-1, & IEC61869-2, 600V CAT III
Installation: clamp type
Output mode: lead output(2.5m)
Connector: BNC, 4mm banana, signal cable(2 cores),customized
Mechanical parameters
Dimensions (L x W x H) (mm): 52.5 x 137.5 x 28
Weight (g): 400
Holding wire diameter (mm): φ18
Max. jaw opening (mm): 18
Jaw color: Red, black
Material: PC+ABS, UL94 V0

APPLICATION
■ Multimeter;
■ Power meter;
■ Phase angle meter;
■ Energy sub-meters;
■ Power load monitoring;
■ Data logging/recording;
■ Energy meter calibrator;
■ power and harmonic meters;
■ Power quality analyzer(PQA);
■ Measuring around cable bundles;
■ Waveform analysis(oscilloscopes meter);

Minimum Order: 3 pieces
