2 Gangs Wi-Fi Dimmer Module

This wifi dimmer switch 2 gang to connect more devices in 2 electric circuits
on it. It is linked to mobile phone by WiFi technology. WIFI is the most
commonly used wireless network transmission technology today. Almost all smart
phones, tablets and laptops support Wifi Internet access. It is widely used in
smart home area.

Different Types Of 2 Gangs Wi-Fi Dimmer Module
2 gang smart dimmer
wifi 2 gang dimmer switch
smart dimmer 2 gang

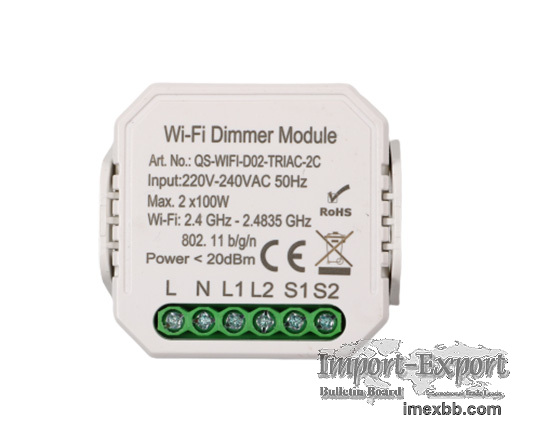

QS-WIFI-D02-TRIAC-2C
2 Channels WIFI Dimmer Module

Voltage 100-240VAC

Max. load: 2x100W

Dims (WxDxH): 46x46x18mm(without clip)
Parameters Of 2 Gangs smart led dimmer module
WiFi WiFi 802.11 b/g/n
Dimming type Trailing Edge
Operation frequency 2.4GHz - 2.4835GHz WIFI
Operation temp. -10ºC - +40ºC
Case temp. Tc +80ºC (Max.)
Operation range ≤ 200 m
IP rating IP20
Certificates CE ROHS
Warranty 2 years

Features Of wifi dimmer 2 gang Module
2 gangs to control more devices according to your needs.
No hub required, WIFI router is enough.
Easy to install behind the existing dimmer switch, keep function of manual
dimmer switches.
App control is synchronized with the manual dimmer switch.
Voice control compatible with Google home and Amazon Alex.
Mininum brightness is settable.
Schedule, group, scene, automation functions organizable with other smart home
devices, easily achieve home automation.
Quality Standard Of 2 gang wifi dimmer Module
EMC Standard (EMC)
ETSI EN 300 328 V2.1.1 (2016-11) ,

ETSI EN 301 489-1 V2.1.1 (2017-02),

ETSI EN 301 489-17 V3.1.1 (2017-02), EN 62311: 2008,

EN 55015:2013+A1:2015, EN 61547:2009,

EN 61000-3-2:2014, EN 61000-3-3:2013

Safety Standard (LVD)
IEC 60669-2-1:2002 / AMD1:2008 / AMD2:2015,

IEC 60669-1:1998 / AMD1:1999 / AMD2:2006,

EN 60669-2-1: 2004+A1: 2009+A2: 2010,

EN 60669-1:2018

Radio Equipment (RED)
ETSI EN 300 328 V2.1.1 (2016-11)

RoHS Standard (RoHS)
2011/65/EU, (EU) 2015/863.

Minimum Order: 2000 pieces
