2000℃ 15KW LAB vacuum induction melting furnace with φ44*90mm crucible

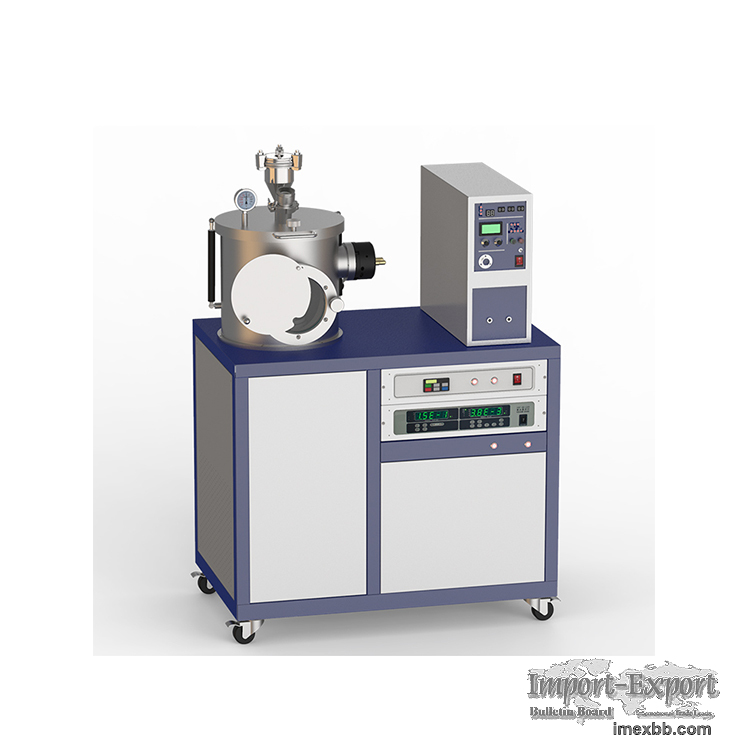

Small vacuum induction furnace CY-IM315-S
This product is a small vacuum induction furnace with induction heating, and the
melting temperature of the equipment can reach 2000℃. The induction furnace adopts
a stainless steel water-cooled chamber and is equipped with a quartz observation
window to observe the sample melting condition. It is suitable for a small amount
of sample melting and heat treatment, phase diagram research. The equipment is
equipped with a high-vacuum molecular pump set, which can effectively improve the
vacuum degree of the substrate and thus improve the quality of the melting. The
equipment is also equipped with a lifting platform and a flip handle to facilitate
the operator to carry out the casting and sampling operations after melting.
The equipment is comprehensive in function, fast in melting, easy to use, energy-
saving and environmentally friendly, and is very suitable for laboratory research
on small-dose metal samples.

Technical parameter
►Inductive power supply
Frequency: high frequency
power: AC220V 15KW/three-phase 280V 25KW

►Vacuum chamber
Cavity material: stainless steel
cooling system: Water-cooled electrode, water-cooled cavity, water-cooled mold
Cavity size: φ360mm× 350mm
Observation window:main watch window φ190mm, upper watch window φ45mm;
Mold window:φ80mm
Water cooling interface: φ8mm quick plug interface
Lifting platform: 0 ~ 40mm lifting range
Accessories: Vacuum funnel
►Vacuum system
Product model: CY-GZK103-A
Pumping interface: CF160
Molecular pump: CY-600
Exhaust interface: KF16
Foreline pump: Rotary vane pump
Vacuum measurement: Compound vacuum gauge
Ultimate vacuum: 1.0E-5Pa
Power supply: AC 220V 50 / 60Hz
Pumping rate: Molecular pump: 600L / S; Rotary vane pump: 1.1L / S
Comprehensive pumping performance: 20 minutes Vacuum degree: 1.0E-3Pa

►Crucible:
Graphite melting crucible: Maximum support φ30mm X 85mm
Alumina insulated crucible: Maximum support φ44mm X 90mm

►Other:
Supply voltage: AC220V 50Hz or three-phase 380V
Overall size: 1000mm X 600mm X 1200mm
Total power: 18KW/28KW
Total Weight: 600kg

Minimum Order: 1 sets
