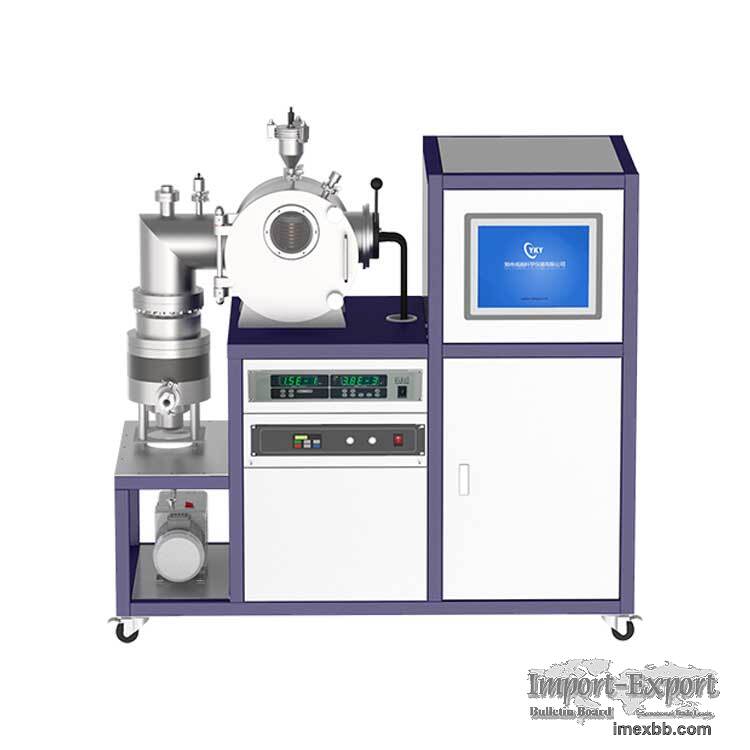

2000℃ 35KW vacuum induction melting furnace with φ60*80mm crucible

Stainless steel water-cooled cavity 35KW vacuum induction melting furnace
CY-IM300-35A is a vacuum induction furnace, using induction heating, equipment
melting temperature can reach 2000 ℃. Adopt stainless steel water-cooled cavity,
equipped with quartz observation window to observe sample melting, suitable for
metal sample melting and heat treatment, phase diagram study. The equipment uses
high-quality high-frequency induction power supply, the largest support for custom
60KW high-frequency induction power supply. The equipment is equipped with a high-
vacuum molecular pump set, which can effectively improve the vacuum of the
substrate and thereby improve the melting quality. The equipment is also equipped
with a lifting platform, a flip handle and a water-cooled copper crucible, which is
convenient for the operator to perform casting and sampling operations after
melting.
The equipment has comprehensive functions, fast melting, easy to use, energy saving
and environmental protection, which is very suitable for laboratory research on
metal samples.

Technical parameter
►Inductive power supply
Frequency: high frequency
power: 35KW can be customized, the maximum is 60KW

►Vacuum chamber
Cavity material: stainless steel
cooling system: Water-cooled electrode, water-cooled cavity, water-cooled mold
Cavity size: φ300mm X 300mm
Observation window Main observation window φ120mm
Accessories: Infrared temperature measurement window, vacuum funnel
Lifting platform: 0 ~ 40mm lifting range
Water cooling interface: φ8mm quick plug interface

►Vacuum system
Product model: CY-GZK103-A
Pumping interface: CF160
Molecular pump: CY-600
Exhaust interface: KF16
Foreline pump: Rotary vane pump
Vacuum measurement: Compound vacuum gauge
Ultimate vacuum: 1.0E-5Pa
Power supply: AC 220V 50 / 60Hz
Pumping rate: Molecular pump: 600L / S Rotary vane pump: 1.1L / S
Comprehensive pumping performance: 20 minutes Vacuum degree: 1.0E-3Pa

►Crucible:
Graphite melting crucible: Maximum support φ60mm X 80mm
Alumina insulated crucible: Maximum support φ120mm X 90mm

►Other:
Supply voltage: AC220V 50Hz or three-phase 380V
Overall size: 1550mm X 700mm X 1400mm
Total power: Reference induction power
Total Weight: 900kg

Minimum Order: 1 sets
