LAB 3KG PLC controlled vacuum induction melting furnace with 2000℃ 60KW

This product is a vacuum induction furnace with induction heating, and the melting
temperature of the equipment can reach 2000℃. The induction furnace adopts a
stainless steel water-cooled chamber and is equipped with a quartz observation
window to observe the sample melting condition. It is suitable for sample melting
and heat treatment, phase diagram research. The equipment adopts high-quality high-
frequency induction power supply and supports customized maximum 60KW high-
frequency induction power supply. The equipment is equipped with a high-vacuum
molecular pump set, which can effectively improve the vacuum degree of the
substrate and thus improve the quality of the melting. The equipment is also
equipped with a lifting platform and a flip handle to facilitate the operator to
carry out the casting and sampling operations after melting.
The equipment is comprehensive in function, fast in melting, easy to use, energy-
saving and environmentally friendly, and is very suitable for laboratory research
on metal samples.
It can strictly control the alloy composition, and has the ability of
electromagnetic stirring and high vacuum degassing. Smelting and casting of nickel-
based, iron-based, cobalt-based and other advanced precision alloys or high-purity
metals can be performed under high vacuum conditions or under a protective
atmosphere. If a graphite crucible is used, low-resistivity metals and their alloys
can be melted by indirect heating, such as gold, silver, copper, aluminum, bronze,
etc.

Technical Parameters
Power Requirements: 30KW,380V,3 phase, 50Hz
Max operating temperature: 2000℃
Crucible capacity: 3Kg
Vacuum chamber: 500*500mm, SS304 material
Heating coil size: Diameter 220mm with height 180mm
Molecular pump: 5.0*10E-6 mbar
Protect atmosphere: N2, Ar
Window view: 2 glass window view
Temperature measurement: Infrared temperature measurement
Temperature control accuracy: ±3℃
Temperature control: PID control
Control ways: PLC touch screen
Cooling method: Integrated cold trap
Crucible: Can be able to tilt to 95 degree for tilt cast
Out dimension: 1350*1100*1500mm
Chamber size: 500mm diameter *500mm height
Vacuum pump: Molecular pump included

Minimum Order: 1 sets

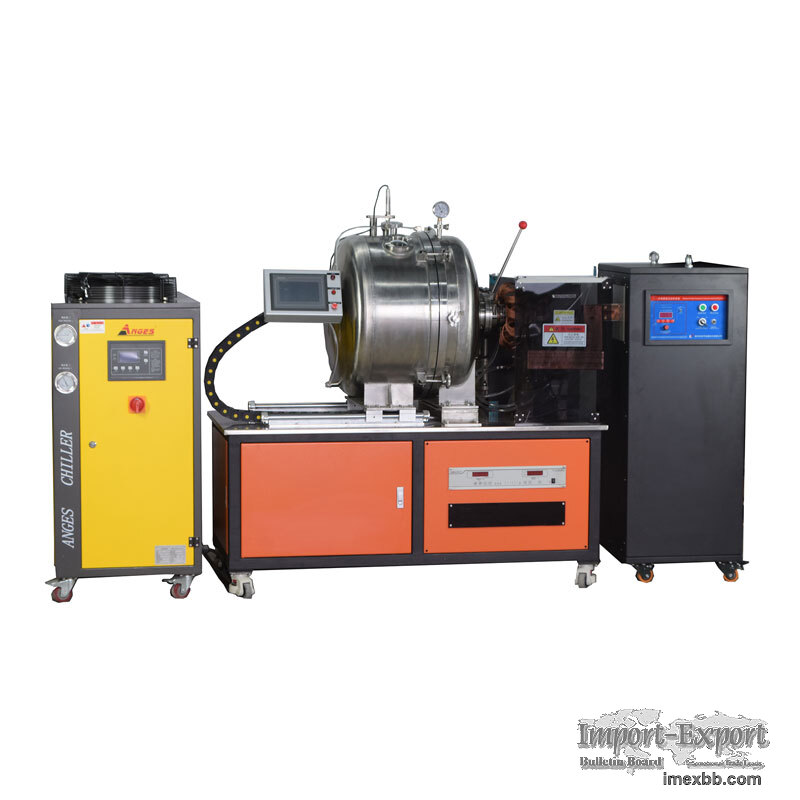

LAB 3KG PLC controlled vacuum induction melting furnace with 2000℃ 60KW
