3-phase prepaid electricity watt-hour meters test system GF302D1S GFUVE

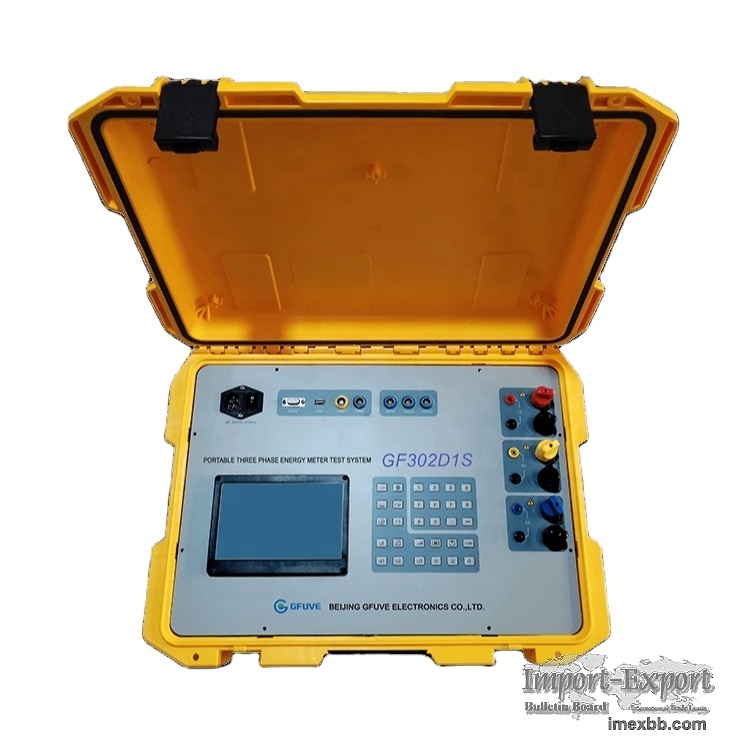

The GF302D1S portable three phase energy meter test system consists of an
integrated 0.05% three-phase current and voltage source and a three-phase
electronic reference standard meter of accuracy class 0.02. Characteristic
features of the GF302D1S are its wide measuring range from 0 to 120A and 0 to
600V, high accuracy and high tolerance to unwanted external influences. The
GF302D1S allows the monitoring of meter installations as well as analysis of the
local mains conditions when it is as portable reference working standard. The
equipment offers high functionality combined with an excellent menu guided
operation via built-in keyboards and colored 7' touch LCD-display. Voltage &
current harmonics output from 2 to 63 times. This model portable meter test system
can be programmable by PC, automatic generation of energy meter error test report.

Specification
Customized support: OBM
Place of Origin: Beijing, China
Brand Name: GFuve
Model Number: GF302D1S
Accuracy: 0.02%, 0.05%
Power supply: One Phase AC 100-265V, frequency 50/60Hz.
Voltage and Current Measuring range: 0-600V/1mA-120A
Voltage error: ±0.02% (30V-600V) ±0.05% (0.1V-30V)
Voltage and Current output range: 500V/120A
Active power output accuracy: 0.05%RG
Reactive power output accuracy: 0.1%RG
Active power output stability: <0.01%RG/120s
Reactive power output stability: <0.02%RG/120s
Weight: 23 kg

Minimum Order: 1 sets
