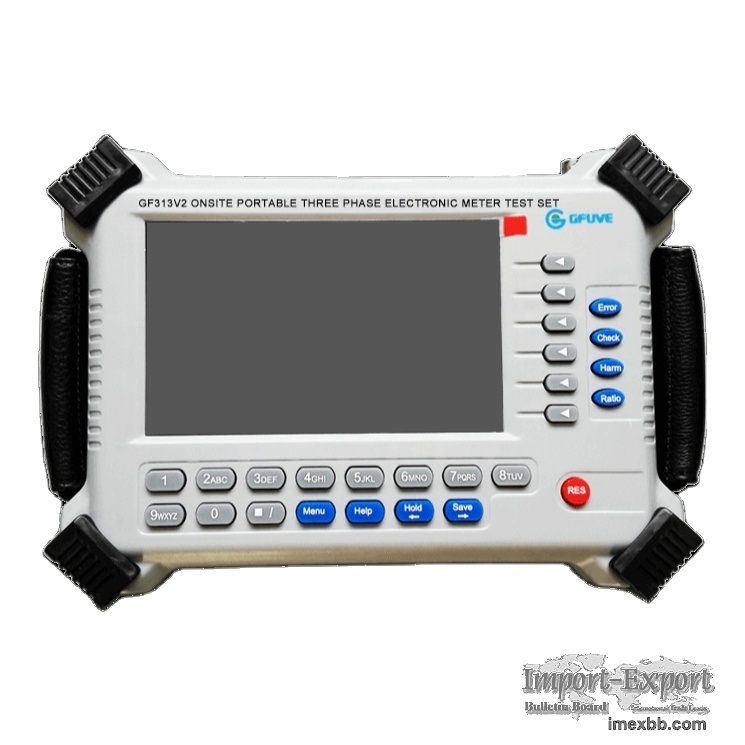

Electrical test system equipment GF313V2 GFUVE Handheld 3-phase calibrator

GF313V2 onsite portable three phase electronic meter test set is the newest
product produced by our company by widely visiting users and referring to the
advantages of the same kind of products home and abroad. The measured part of the
product adopts high speed A/D transmission to send DSP to conduct digital
processing, which largely improves measured degree of accuracy and stability.
Central processing part adopts 32-bit ARM embedded technology to make instrument
interface novel, function abundant, operation distinct and easy, and performance
steady. Class of accuracy: Class 0.1, 0.2 or 0.5, range from 3×120A/3×600V or
3×200A/3×600V, with comfort design, small size and light weight. The model
GF313V2 three phase meter meter test set is suit for metrological service of
electricity power utilities, industrial and mining enterprises and electric lab to
field use.

Specification
Customized support: OBM
Place of Origin: Beijing, China
Brand Name: GFuve
Model Number: GF313V2
Accuracy: 0.1%, 0.2%, 0.5%
Power supply: External power ;Phase voltage supply; Li-Battery supply
Voltage range: 0-600V
Voltage error: ±0.1%(30-600V); ±0.05%(30-600V)
Active energy error: ±0.1%, ±0.2%, ±0.5%
Reactive energy error: ±0.2% , ±0.5%
Stability: 0.02%/minute
Long term Stability: <100x 10E -6 /Year
Dimension: 245x168x70 mm
Weight: 1.8 kg

Minimum Order: 1 sets
