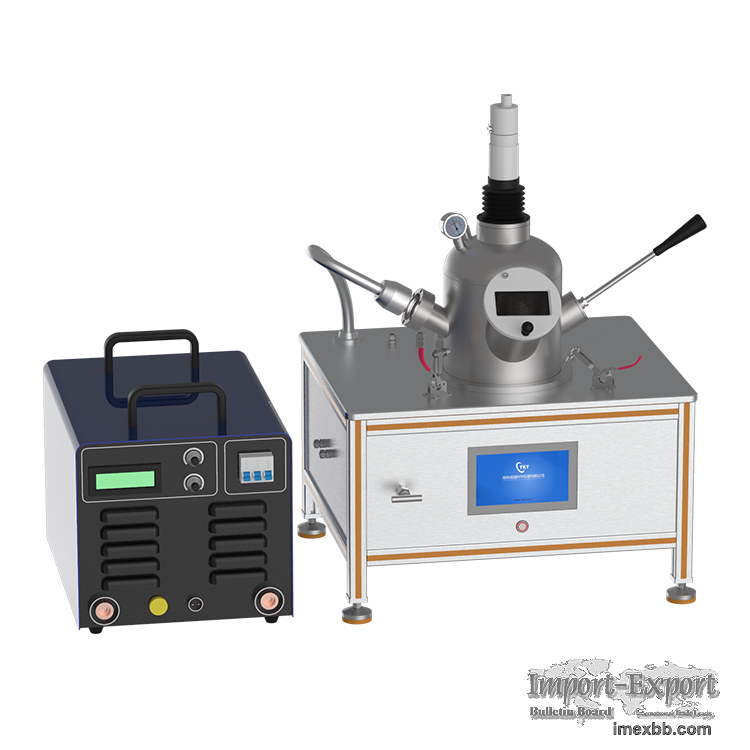

3000℃ vacuum electric arc melting furnace with 7-station crucible

Vacuum arc melting furnace CY-AM180-V7X
This product is a small vacuum arc melting furnace with tungsten electrodes and
water-cooled copper crucible. The equipment melting temperature can exceed 3000℃,
and the temperature is reduced rapidly. The equipment adopts stainless steel water-
cooled chamber and is equipped with a quartz observation window to observe the
sample melting condition, which is very suitable for sample melting and heat
treatment, phase diagram research. During smelting, the metal is placed in the
water-cooled copper crucible. According to the process requirements, the furnace
can be filled with high-purity inert protective gas, and the high-temperature
plasma generated by the arc is used to melt the metal. Multi-station copper
crucible can be used for a variety of small metal (about 3g ~ 5g per station)
smelting in sequence, with the side control lever for tilting and rotating metal
ingots after smelting. There is a larger cavity in the middle of the copper
crucible for mixed smelting of the alloy (which can hold about 25g). The smelting
furnace is also equipped with a vacuum suction casting mold. The user can replace
and install it by simple tools. After replacement, the vacuum suction casting
function can be realized. The cylindrical metal sample can be made to facilitate
subsequent cutting, clamping and analysis operations.
The device has the advantages of small size, stable performance, simple operation,
comprehensive functions and convenient use, and is very suitable for laboratory
research on small doses of metal samples.

Technical parameters:
Supply voltage:AC380V (three phase) or AC220V, 50Hz
Power:Customizable, default 18kW (three-phase 380V) / 13kW (AC220V)
Chamber material:Stainless steel
Cooling method:Water-cooled chamber, water-cooled electrode, water-cooled copper
crucible
Chamber size:O.D φ200mm×H.180mm
Observation window diameter 40mm

Crucible:
Water-cooled copper crucible with 7 cavities, six cavities φ25mm×8mm, medium
large working cavity φ40mm×12mm, which can be used for mixed smelting alloy
Vacuum suction casting mold crucible, φ40mm×12mm

Water-cooled connector:1/4-inch quick plug interface
Vacuum interface:KF16 flange
Vacuum pump:Rotary vane pump; molecular pump set is optional
Intake interface:1/4-inch quick plug interface
Intake valve:Stainless steel needle valve
Vacuum gauge:2.5-stage pointer vacuum gauge
Overall dimension:600mm×500mm×800mm (without vacuum system and external power
supply)

Minimum Order: 1 sets
