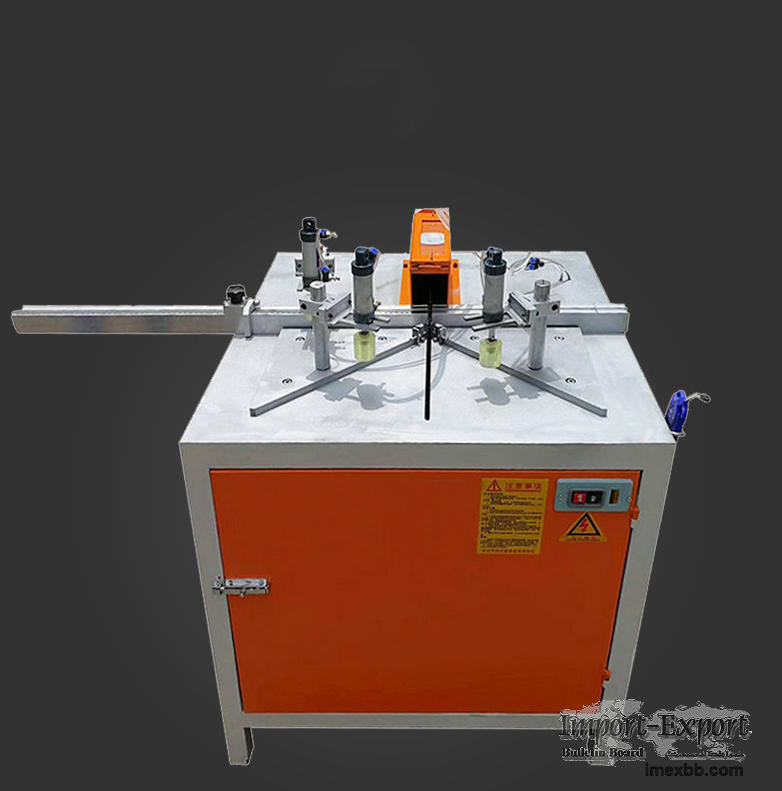

305-Single-Head Angle Cutting Machine

Parameter Specification
Maximum Cutting Stroke 100mm – 150mm
Maximum Cutting Thickness 70mm
Cutting Angles 45°, 90°
Standard Ruler 1 meter (left side, complimentary)
Motor Power 1.5KW
Operation Mode Semi-automatic
Working Voltage 220V / 380V
Working Air Pressure 0.4 – 0.8kpa
Motor Speed 2800 r/min
Saw Blade Size 305mm diameter (compatible with 10″–12″ blades)
Machine Weight 165kg
Stretch Film Packing Size 700 × 700 × 950mm
Wooden Case Size 750 × 750 × 1050mm
Configuration Standard Configuration
Motor Brand Mingjun Motor
Electrical Switch Zhejiang Tianhua Electric
Cylinder Brand Haoyang Pneumatic
Motor Specification Pure copper high-efficiency motor
