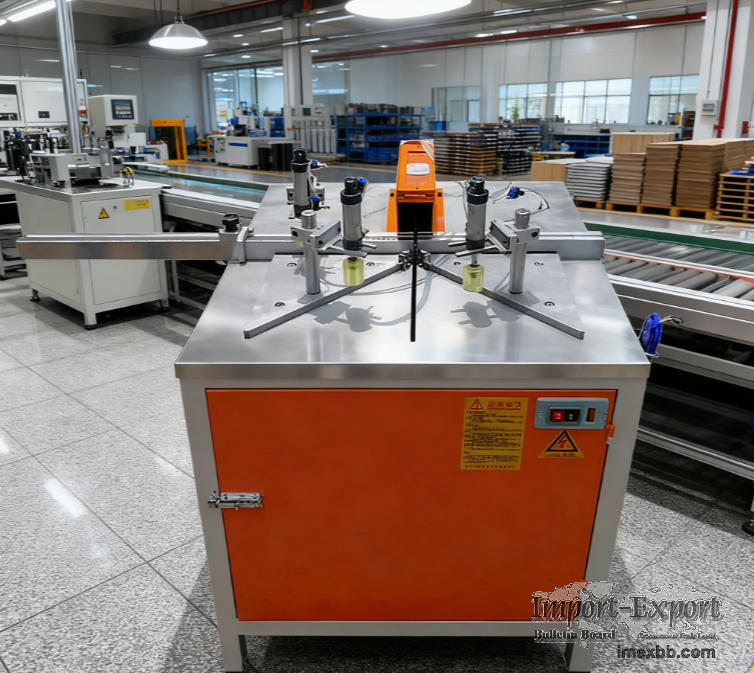

405-Single-head Cutting Edge Machine

405-Single-head Cutting Edge Machine

Key attributes
Category Parameter TechnicalSpecification Remarks
Basic Parameters Machine Model 405
Power Supply Voltage 220V/380V/Other voltages customizable
Rated Power 2.2KW Optional
Working Air Pressure 0.6-0.8MPa
Saw Blade Size 40525.43.0*120 (mm) (DiameterInner
HoleThickness*Tooth Count)
Dimension & Weight Equipment Size 8007501100mm Equipped with 1m
Aluminum Fence
Equipment Weight 150KG
Wooden Case Size 8608101200mm
Wooden Case Weight 1650KG
Cutting Capacity Applicable Materials Aluminum, Wood, PVC, etc.
Other materials expandable
Cutting Angles 45°, 90°
Maximum Cutting Thickness 120mm Customizable
Maximum Cutting Stroke 100mm Customizable
Mechanical Performance Cutting Accuracy ±0.15mm Adjustable
Cutting Speed 10-15 times/minute Adjustable
Blade Material Titanium Alloy Titanium alloy saw blade is recommended
for high wear resistance requirements
Ffeatures at a glance
Feature
1. The machine is used for cutting of aluminum and upvc profile and wood
2. Imported carbides blade is of accurate processing and high endurance. 3.This
45 90 degree corner notching machine is suitable for cutting and beveling
picture frames, photo frames, wooden strips, furniture, plastic strips,
aluminum profiles and door frames. It can make the movable table work very
smoothly during the cutting process.
