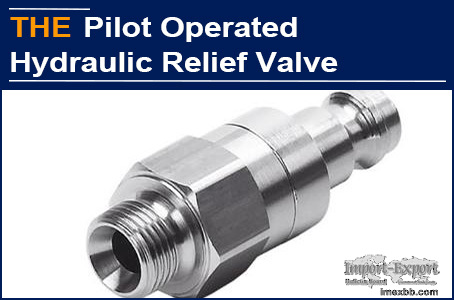

AAK hydraulic relief valve used a new design, James admired

James is the purchasing director of one of our American Hydraulic customers.
They are the top 3 in the construction machinery industry in the United States,
and their market share is increasing year by year. James is also doing well. In
May last year, the MP550-HDD-18 cement delivery pump supplied by their company
to a local construction company often failed to reach the rated value for the
system pressure during use, and the oil pressure of the hydraulic system can
only reach 12MPa. After disassembling the hydraulic system, the engineer found
that the joint surface between the conical pilot valve body and the valve seat
of the hydraulic relief valve was grinded out with a circle of uneven groove
line with a depth of about 1mm for unknown reason. The hydraulic oil flowed
back to the oil tank from this groove, and the hydraulic relief valve had no
sealing function.

The customer wanted James’s company to replace the hydraulic relief valve of
the same model within 2-3 weeks. If they miss the time, the project progress
will be affected. When James purchased this hydraulic relief valve from the
original German hydraulic valve supplier again, he was told that they produce
this hydraulic relief valve no longer. If he wanted to re-produce it, it would
take 35 days and modify the production process and auxiliary equipment, which
would require an additional cost of more than 30,000 US dollars. This style of
hydraulic relief valve was just purchased by James 2 years ago. When he
reported this situation to the president, the president didn't understand why
he didn't have an alternative hydraulic valve manufacturer. James realized that
the president was unhappy. When he sent the anatomical drawing of this
hydraulic relief valve to more than 20 hydraulic valve manufacturers, almost
all said that they have no hydraulic relief valve with such structure, James
was a little flustered.

In March this year, James just purchased a batch of high-precision hydraulic
relief valves from AAK. He wanted to see if AAK had a way to solve this thorny
problem. When he sent us the pictures of this hydraulic relief valve made in
Germany, we asked him to send us the whole complete technical drawings, as well
as the use environment and working conditions. The pressure of this hydraulic
relief valve is 31.5Mpa and the flow is 200L / min, which is basically
consistent with the parameters of the hydraulic relief valve we supplied to
them before. However, there is a fatal problem that the internal structure,
appearance, shape and size are inconsistent with those of the hydraulic relief
valve they purchased in Germany, so it is difficult to install on the
transmission line.

After learning that the only way is to meet the requirements of the
transmission line at the construction site in the United States, AAK engineers
designed a new hydraulic system with two pipe joints and an oil plug according
to the diameter and outlet size of the overflow valve of the cement pump and
the working pressure, and sent the design of the new hydraulic relief valve to
James at the first time. Their engineers were surprised by this idea, and asked
us to make a sample quickly. We produced 2 samples of the new hydraulic relief
valves in 10 days. After they received the samples, the hydraulic relief valve
was installed on the cement pump. After the startup test, the whole conveying
system can be used normally.

Their customers were very satisfied with the speed of problem solving from
James' company this time, and promised that James’s company would be the first
choice for the purchase of all hydraulic system equipment, which made his
president very happy. After this waving, James said that the president valued
him more and more.

AAK hydraulic valve has high precision and creativity beyond peers. We
guarantee the quality for 3 years of service life. If you have any problems
with hydraulic valve, please contact us for a small try.
