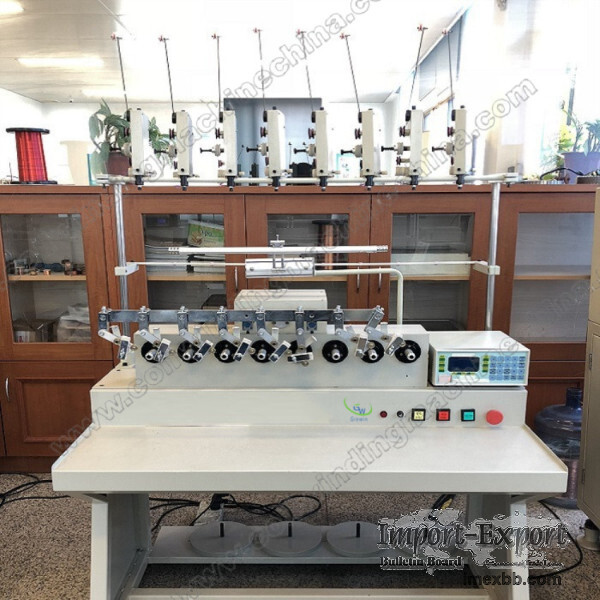

ACGW28-80 High Speed Winding Machine

Specifications：
Spindle number:8
Wire size range:0.03-0.2mm
Loop diameter:56mm
Max wire distance:9.99mm
Winder width:60mm
Spindle pitch:70mm
Max speed:0-10000RPM
Spindle motor:Three Phase Motor+AC Drive
Winder motor:Stepping motor
Input power:220V 50HZ/60HZ
Machine size:1080×800×1100mm
Package size:1180×890×1130mm
Net weight:167kg
Gross weight:204kg

Features：
High Speed Winding Machine is to deal with the small coil
products and transformer industry demand of high production to study and
production of high speed winding machine, with high speed, low sound,
winding stable.
Meanwhile winding 8 group products, and time efficient. This machine design
of 32 bit controller chip, It’ll be faster and higher reliability.
In Chinese and English display,High Speed Winding Machine is easy to
operation,winding data retention after power failure, not to discarded
products.
All the parts for High Speed Winding Machine are imported prats,such
as:Japan Bearing (NSK、NTN),Japan BANDO belt ,U.S.A GATES belt,Taiwan Ball
screw (TBI),Taiwan AC Drive and so on.
Synchronous motor coil,Solenoid valve coil , Water pump coil , Clock coil
and any other special coils.


Advantages：
High Speed Winding Machine is using the LCD latest synchronization with
the coupling cable controller.
With self detection, including setting error, speed tracking and
velocity calibration optional lifting speed of main spindle
To start the operation speed of the spindle motor to climb time can decide
for ourselves, to guarantee the product quality of winding.

APPLICATION:
High Speed Automatic Coil Winding Machines are used for winding the small
EI transformers, signal transformers, inductors, filter choke coil, relays,
current contactors, valve coils, solenoid coils, telecom bobbin
transformers. It can complete the coils without any one operator in fully
automatically.

PRACTICAL APPLICATION :
TRAINNING CUSTOMER TO OPERATE WINDING MA , CHNE :
1.All service engineers with 10 ye ,
ars experience are gotten special technol ,
, ogy training, who can deal with various bre , akdown problem.
2.Guide the user to use a , ccurately and how to maintain the Multi Spindle
Coil Winding Machine.
Provide free consultation about pr ,
oduction process technology of electronic< , br>

Minimum Order: 1 pieces
