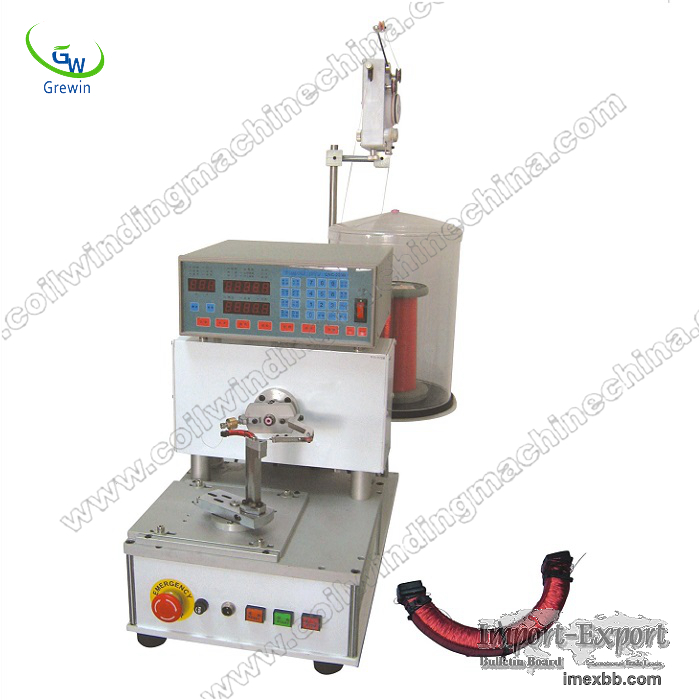

GW-9101 Digital Alternating Winding Machine

SPECIFICATION:
Model:GW-9101
Spindle:1
Wire diameter:0.02-1.5
Spindle motor:300W/DC
Wire spacing:0-9.999MM
Max. speed:3600-6000RPM
Spreading Motor:Stepper motor
Size:700*500*700
Power supply:AC 220V 50/60HZ
Weight:55

FEATURES:
Digital Alternating Winding Machine adopt microcomputer controller, easy to
set data
The wireline shaft is driven by a stepping motor with a constant current
circuit, with fast wireline speed and high precision
Wound circular arc products (hollow arc and solid arc can be wound)
The maximum arc is less than 180 degrees
The Digital Alternating Winding Machine point, width, line distance and
speed can be set in sections to achieve the purpose of multi-section and
multi-speed
Digital Alternating Winding Machine can set 999 step sequence, and can
store the set value for more than one year

ADVANTAGES:
Digital Alternating Winding Machine to meet the requirements of high
efficiency and high output.
Fully automatic machines are generally designed with multi-head linkage,
and most domestic manufacturers refer to the design of imported models from
Taiwan and other places.
The programmable controller is used as the control core of the equipment,
with the manipulator, pneumatic control components and execution
accessories to complete the functions of automatic wire arrangement,
automatic foot winding, automatic wire cutting, automatic loading and
unloading skeleton, etc.
Ring winding machine this type of production efficiency is very high,
greatly reduce the reliance on artificial, an operator can take care of
several such equipment at the same time, the production quality is
relatively stable, very suitable for production requirements of high
processing occasions.

APPLICATION:
Automatic Coil winding Machines are used for winding the small EI
transformers, signal transformers, inductors, filter choke coil, relays,
current contactors, valve coils, solenoid coils, telecom bobbin
transformers. It can complete the coils without any one operator in fully
automatically.

PRACTICAL APPLICATION :
TRAINNING CUSTOMER TO OPERATE WINDING MA , CHNE :
1.All service engineers with 10 ye , ars experience are gotten special technol
, ogy training, who can deal with various bre , akdown problem.
2.Guide the user to use a , ccurately and how to maintain the Digital
Alternating Winding Machine.
Provide free consultation about pr , oduction process technology of electronic

Minimum Order: 1 pieces
