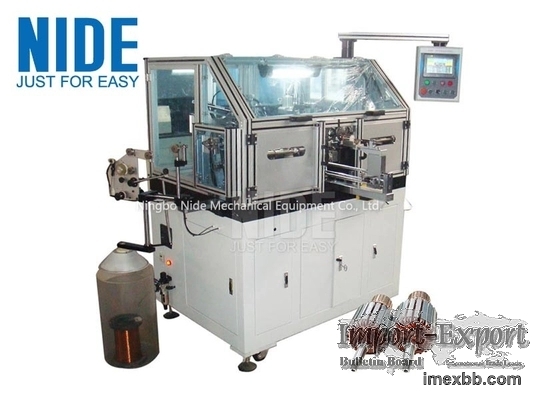

Small Double flyer Armature Winding Machine , armature rotor Coil winding m

Semi-automatic small Double flyer armature rotor wire Coil winding machine for
sale in INDIA





1.Application of the rotor wire coil winding machine



The automatic coil winding machine is Widely used in a variety of electrical
motor winding tools, such as table fans,ceilling fans,air conditioning,washing
machines and so on.





2.Description of the rotor wire coil winding machine



The automatic rotor coil winding machine adops Double flyer and the armature
winder is used for even number slot motor wire winding.

The rotor winder adopts Japanese frequency speed adjustment,

low rise and accelerating,

numeric code dialing setting operation speed and deceleration speed ahead,

breaking and location accurate,

foot stepping to loose tooling,

automatic closing tooling.

And Easy operating, save more labor and manufactory cost.





3.Main technical data of the rotor wire coil winding machine



Product name armature rotor Coil winding machine
Power suply Voltage 220V±10%, 50HZ
Power 0.8KW
Wire Diameter 0.08-1.08mm
Pre-set turns 0-9999
Advance Turns 0-9
Principal Axis Center Height 170mm
Rotation Speed 0-1400r/min
