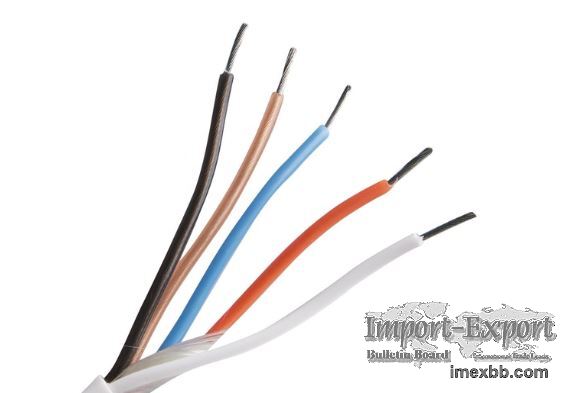

AFF Multi Core Insulated Ultra Fine Wire 0.08mm Electronic Appliances

DingZun Cable Ultra Flexible for AFF Multi Core Insulated High Temperature
Cable for Electronic Appliances
Rated Temperature:-65℃∽+200℃(FEP)
-65℃∽+250 , ℃(PFA)
Rated Voltage:600V
Conductor:Silver copper/Tinned copper /Nickel copper
Insulation:FEP,PFA,PTFE
Core color:Red, yellow, blue, white, black, green, brown, orange, gray,
transparent, and bicolor etc.
Jacket:FEP,PFA
Jacket color: Red, yellow, blue, white, black, green, brown, orange, gray,
transparent etc.
Application: widely used in all kinds of mobile motor, aviation, steel power
plant,glass manufacturing, petrochemical, temperature sensor etc. high
temperature environment

Section

(mm2)

Conductor

N , o./ Dia.

(mm)

Avg.

Insulation Thickness

(mm)

Core Number
Jacket Thickness

(mm)

Max. Resistance

20℃(≤Ω/km)

Tinned copper Silver copper
0.035 7/0.08 0.15 ≤37core ≥0.3 568 525
0.05 7/0.10 0.20 356 330
0.08 7/0.12 0.20 245 227
0.12 7/0.15 0.25 160 146
0.20 7/0.20 0.25 90.4 83.5
0.35 19/0.16 0.25 53.1 49.5
0.50 19/0.18 0.25 36.7 36.0
0.75 19/0.23 0.28 ≤19core ≥0.4 24.6 22.7
1.0 19/0.26 0.28 20.4 19.0
1.5 19/0.32 0.32 12.7 11.7
2.0 19/0.37 0.32 10.0 9.45
2.5 19/0.41 0.40 7.43 6.86
4.0 37/0.37 0.40 ≤7core ≥0.5 4.88 4.51
6.0 37/0.45 0.50 3.30 3.05
Remarks: able to produce according to customer’s requirement
Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a high-tech
enterprise was established in 2005, which engaged in special wire and cable
research, development, design, manufacturing.
