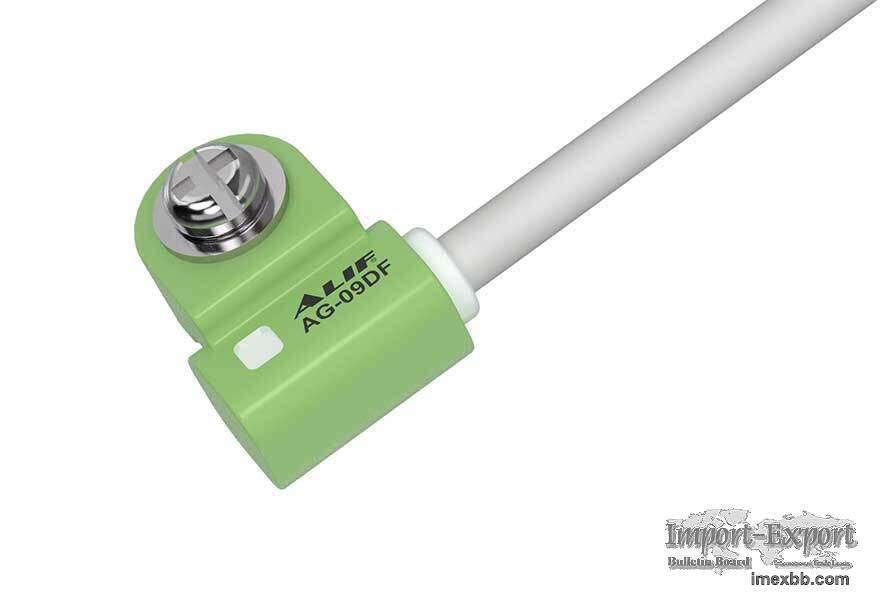

AG-09 Magnetic Cylinder Sensor

AG-09 series switch magnetic sensor
The new AG-09 series is suitable for AIRTAC 7.1*3.2 L-slot cylinder and can
replace AIRTAC DS1-J. The casing is reduced and optimized, which increases
the layout space and avoids collision. It is the preferred magnetic switch
sensor for short-stroke L-slot cylinders.

Specification of AG-09 sensor magnetic switch
Model AG-09 DF AG-09 N AG-09 P
Switching Logic Normally Open Solid State Output, Normally Open
Output Type 2 Wire Solid State NPN Current Sinking PNP Current
Sinking
Voltage Range 10～30V DC 5～30V DC
Sensor Current 1～50 mA 0～100 mA
Switch Rating 1.5 W Max. 3W Max.
Consumption / 3 mA Max.@24V
Voltage Drop 2.65V Max.@50mA DC 0.8V Max.@100mA DC
Leakage Current 90 μA Max.@28V 0.01 mA Max.
Indicator Red LED Red LED Green LED
Cable Φ2.8, 2C, Grey Oil-Resistant PVC Φ2.8, 3C, Grey Oil-Resistant
PVC
Sensitivity 40～800 Gauss 40～800 Gauss
Sensor Frequency 900Hz 900Hz
Temperature -10～70℃ -10～70℃
Shock 50G 50G
Vibration 9G 9G
Ingress Protection IP68 (GB/T4208-2017) IP68 (GB/T4208-2017)
Protection Circuit Surge Suppression Power Reverse Polarity; Surge
Suppression
CE Certificate NO. E8A 17 04 53334 007 E8A 17 04 53334 008
CNEx Certificate NO. CNEx21.2238X CNEx21.2239X
RoHS2.0 NO. RoHS 2011/65/EU & (EU) 2015/863
Reach NO. (EC) N 1907/2006 (REACH)

Features of AG-09 Magnetic Cylinder Sensor
The design of a smaller shell increases the flexibility of the equipment
space layout.

The installation is placed on the top, which reduces the time required for
the operator to install and disassemble.
