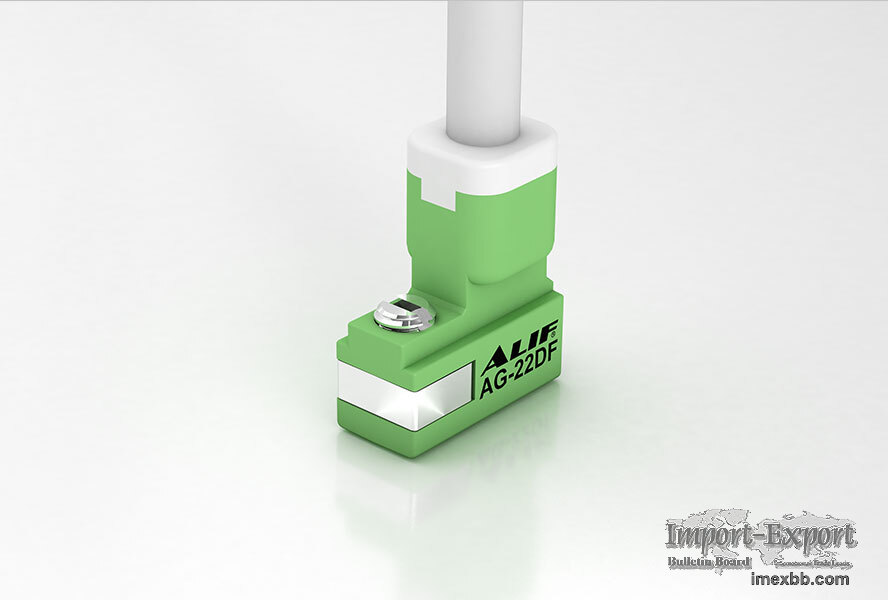

AG-22 Magnetic Cylinder Sensor

AG-22 series magnetic sensor

AG-22 series is specially used for AIRTAC 4.35*4.5 square groove, the top
outlet design gives the equipment more layout ideas; the compact structure is
only 9.5mm in length, especially suitable for the selection of ultra-short
stroke cylinders.

Specification of AG-22 Magnetic Cylinder Sensor
Model AG-22DF/AG-29DF AG-22N/AG-29N AG-22P/AG-29P
Switching Logic Normally Open Solid State Output, Normally Open
Output Type 2 Wire Solid State NPN Current Sinking PNP Current
Sinking
voltage Range 10~30V DC 5~30V DC
Sensor Current 1~50 mA 0~100 mA
Switch Rating 1.5 W Max. 3 W Max.
Consumption / 3 mA Max.@24V
Voltage Drop 2.65V Max.@50mA DC 0.5V Max.@100mA DC
Leakage Current 90 μA Max.@28V 0.01 mA Max.
Indicator Red LED Red LED Green LED
Cable 2.8∮, 2C, G Rey Oil-Resistant PVC 2.8∮, 3C, Grey Oil-Resistant
PVC
Sensitivity 40~800 Gauss 40~800 Gauss
Sensor Frequency 1000Hz 1000Hz
Temperature -10~70℃ -10~70℃
Shock 50G 50G
Vibration 9G 9G
Ingress Protection IP67 (GB/T4208-2017) IP67 (GB/T4208-2017)
Protection Circuit Surge Suppression Power Reverse Polarity; Surge
Suppression
CE Certificate NO. E8A 17 04 53334 007 E8A 17 04 53334 008
CNEx Certificate NO. CNEx21.2238X CNEx21.2239X
RoHS2.0 NO. RoHS 2011/65/EU & (EU) 2015/863

Features of AG-22 Magnetic Cylinder Sensor
The compact structure design increases the flexibility of the equipment space
layout.
Top outlet design, flexible wiring and easy installation.

ALIF Technology provides alif sensor, cylinder position sensors, magnetic
cylinder position sensor, pneumatic cylinder linear position sensor,
pneumatic cylinder with position sensor, pneumatic cylinder position sensor,
cylinder position sensor, magnetic sensor for pneumatic cylinder, etc. For
more information, please feel free to contact us!
