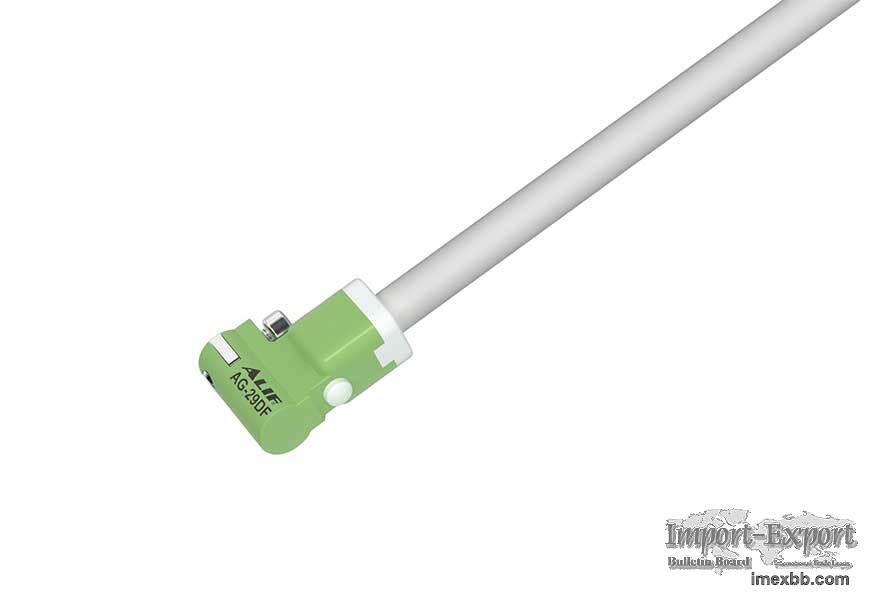

AG-29 Magnetic Cylinder Sensor

AG-29 series magnetic sensor

AG-29 series is the smallest magnetic switch in the world so far. It is
suitable for 4φ C-slot cylinder. Although the length is only 8mm, it can
withstand 3.5kgF tension without loosening after tightening the screw. The
top outlet design makes the equipment wiring more flexible.

Specification of AG-29 Magnetic Cylinder Sensor
Model AG-29DF AG-29N AG-29P
Switching Logic Normally Open Solid State Output, Normally Open
Output Type 2 Wire Solid State NPN Current Sinking PNP Current
Sinking
Voltage Range 10～30V DC 5～30V DC
Sensor Current 1～50 mA 0～100 mA
Switch Rating 1.5 W Max. 3 W Max.
Consumption / 3 mA Max.@24V
Voltage Drop 2.65V Max.@50mA DC 0.5V Max.@100mA DC
Leakage Current 90 μA Max.@28V 0.01 mA Max.
Indicator Red LED Red LED Green LED
Cable Φ2.8, 2C, Grey Oil-Resistant PVC Φ2.8, 3C, Grey Oil-Resistant
PVC
Sensitivity 40～800 Gauss 40～800 Gauss
Sensor Frequency 900Hz 900Hz
Temperature -10～70℃ -10～70℃
Shock 50G 50G
Vibration 9G 9G
Ingress Protection IP68 (GB/T4208-2017) IP68 (GB/T4208-2017)
Protection Circuit Surge Suppression Power Reverse Polarity; Surge
Suppression
CE Certificate NO. E8A 17 04 53334 007 E8A 17 04 53334 008
CNEx Certificate NO. CNEx21.2238X CNEx21.2239X
RoHS2.0 NO. RoHS 2011/65/EU & (EU) 2015/863
Reach NO. (EC) N 1907/2006 (REACH)

Features of AG-29 Magnetic Cylinder Sensor
Miniature exterior design increases the flexibility of equipment space
layout.
The top outlet design makes the wiring more flexible.

ALIF Technology provides alif sensor, hydraulic cylinder stroke position
sensor, pneumatic cylinder magnetic sensor, etc. For more information, please
feel free to contact us!

Minimum Order: 1 packs
