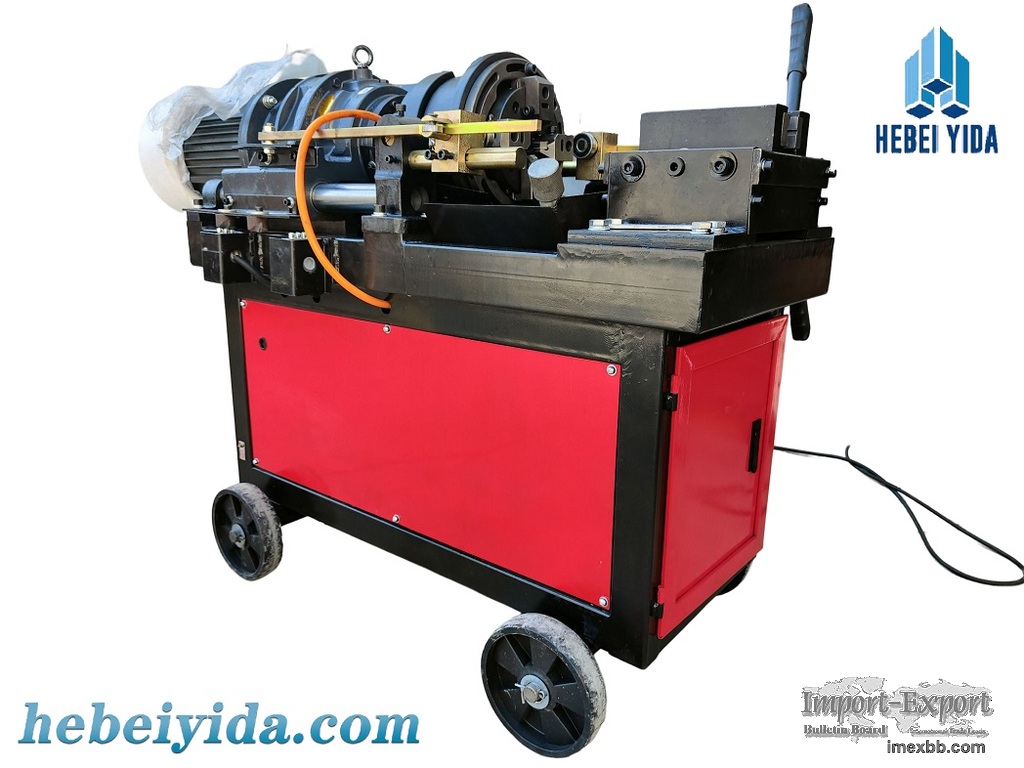

BGZL-40B3 Rebar Rib Peeling Thread Rolling Machine

1).BGZL-40B3 Rebar Rib Peeling Thread Rolling Machine is used for rebar
mechanical splicing in construction work. When the machine is running, the
rebar ribs are peeled first, and then parallel threads are rolled on rebar end.
The two processes are completed only once, making the processing speed fast,
the thread quality high and the operation stable. Machinable rebar with
diameters from 16mm to 40mm.
2).The Capacity and Usage
BGZL-40B3 Rebar Rib Peeling Thread Rolling Machine is a exclusive use rib
peeling and knurling machine for straight screw thread connection. It is mainly
used for processing of the ends of structural steel bars.
3).Fundamental Principle
First, It can peel the across and vertical rib by the rib peeling mechanism and
then use the roll extrusion part to roll and press the screw thread. This
machine combines the rib peeling, rolling and pressing together. It can
complete the screw thread processing with only once of the loading.
4).The Features of The Machine
1. It can complete the rib peeling, and then roll and press the thread
processing in one loading and the speeding of the processing was very quickly.
2. High automation with easy operation.
3. The steel bar was rolled and pressed after the rib peeling and it makes the
screw thread with better decorative design, high precision and good diameter
consistency.
4. The range of the steel bar processing is very large; this machine can
complete the processing of the screw thread for the steel bar in the diameter
range of 16----40mm.
5. The rolling head structure was scientific, one machine only equipped with
one rolling head. It can complete the positive and negative roll extrusion
together when changing the position of the equipment installation.
6. It is very easy to roll and press the different standard steel bar with the
same thread pitch, it can be adjusted without disconnect the rolling head.
7. The pressure dimension was stable and the rolling head can be adjusted and
it also has the orientation system.

Minimum Order: 1 sets
