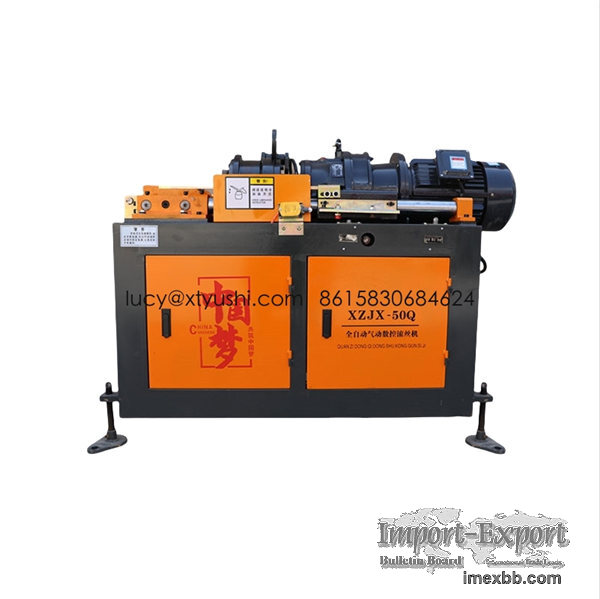

Professional High Speed Pneumatic rebar coupler threading machine

A Steel Rod Threading Machine works through a mechanical process combining
rotation and pressing. Powered by a motor, the machine drives a threading tool
or roller at high speed while firmly holding the steel rod in place. This
process forms continuous threads on the steel rod's surface, which can then be
connected using threaded steel sleeves for reliable and robust connections.
To ensure optimal performance, a Steel Rod Threading Machine is equipped with
high-quality components, including:
Motor: Supplies power for threading operations.
Reducer: Regulates speed and torque for smooth functioning.
Rollers and Guide Plates: Maintain stability and threading precision.
Processing Tools: Responsible for cutting threads on steel rods.
Control System: Enables users to monitor and adjust parameters efficiently.
A robust machine ensures smooth operation, long-term durability, and high
performance in various threading applications.
Production Name thread stripping rib rolling machine
Machine weight  700kg
Spindle speed 762/min
processing range 16-40mm
thread roller  Divided rounds
Standard frequency 60Hz
production dimension 1900*800*1000mm
Motor power 7.5kw
