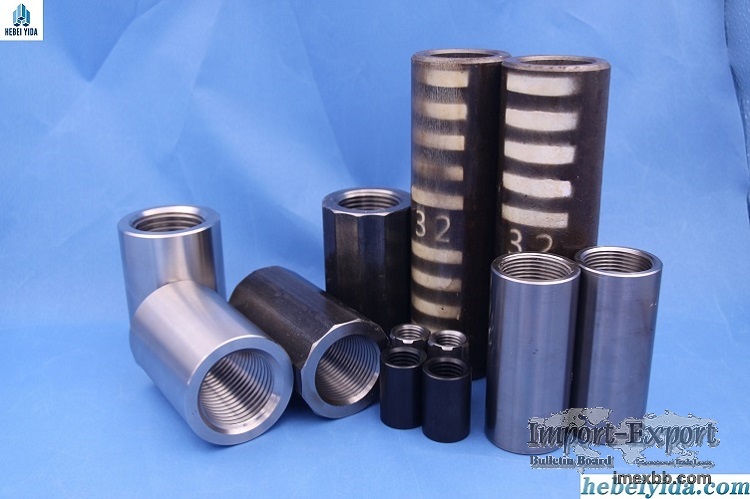

Mechanical Splicing Rebar Coupler

Rebar couplers are a great way to simplify the design and construction of
reinforced concrete. They allow you to connect reinforcement bars of various
grades and diameters quickly and reliably. With their parallel-thread system,
mechanical splicing solutions can provide fast, high-performance connections
that are perfect for any project.

1). The parameter of coupler
Size(mm): Φ16-Φ40
O D±0.5(mm): 25-49
Thread(mm): M16.5-M40.2
L±0.5 (mm): 40-95
Pitch(mm): 2.0-3.5
Weight(kg/pc): 0.111-1.085
Thread Angle: 60 Degree

2). The Characteristics of the Usage
Standard Model: Used in the occasion for connecting the steel bar in normal
situation
Different Diameter Model: Used for connecting the steel bar in different
diameters
Flared Model: Used for the steel bar which was hard to match
Positive And Negative Screw Thread Model: Used in the occasion when the steel
bar in the two sides both can not be turned but the lengths can be adjusted.
Locking Nut Model: Used when the steel bar can not be turned, then it turns the
splicing coupler to join the steel bar and then lock the splicing coupler with
the locking nut.

Minimum Order: 5000 pieces
