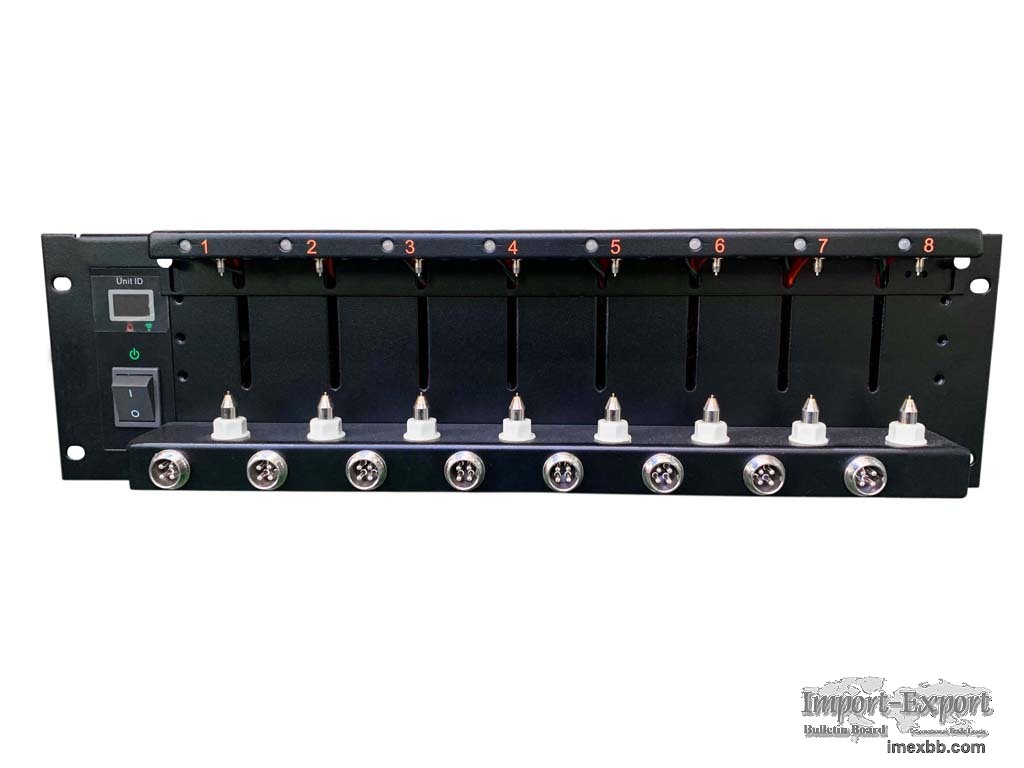

BTS5V6A Neware Battery Tester

Product Introduction:
1.Neware pouch cell battery tester provides most applications in cylindrical
cell and pouch cell capacity Testing.It based on charging discharging battery
under different modes. It controlled by the Monitor Software installed at
computer. Monitor software to edit testing program and BTSDA to analysis tested
data.
2.Every unit pouch cell battery tester has 8 channels and could be installed
Max.10 units on a rack make up 80 channels.Each of channel could work
independently with different charge discharge program at same time.
3.Neware battery tester has constant current charge,constant voltage
charge,constant current and voltage charge,constant power charge,constant
current discharge,constant voltage discharge,constant power discharge,constant
resistance discharge.
4.5V6A battery tester widely used in Pouch Cell Testing,Mobile Battery
Testing,Cylindrical Cell Testing,Production Line Testing,Super-capacitor
Testing and Lab Battery Materials Research.
5.The pouch cell battery tester is suitable for all kinds rechargeable
batteries such as lithium battery, NI-MH battery, Zn-Mn watch battery and so
on.

Key Technology Parameters:
Voltage Range:-5V~5V
Lowest Discharge Voltage:1.5V
Voltage Testing Precision:±0.05%

Current Range 1:0.5mA~100mA;
Current Range 2:100mA~3A;
Current Range 3:3A~6A
Current Testing Precision:±0.05%

Primary Applications:
Pouch Cell Testing
Mobile Battery Testing
Cylindrical Cell Testing
Production Line Testing
Super-capacitor Testing
Lab Battery Materials Research

Key Features:
DCIR Testing
Pulse Testing
Capacity Testing
Cycle Life Testing
Testing Data Analysis
Charge/Discharge Testing

Minimum Order: 1 sets
