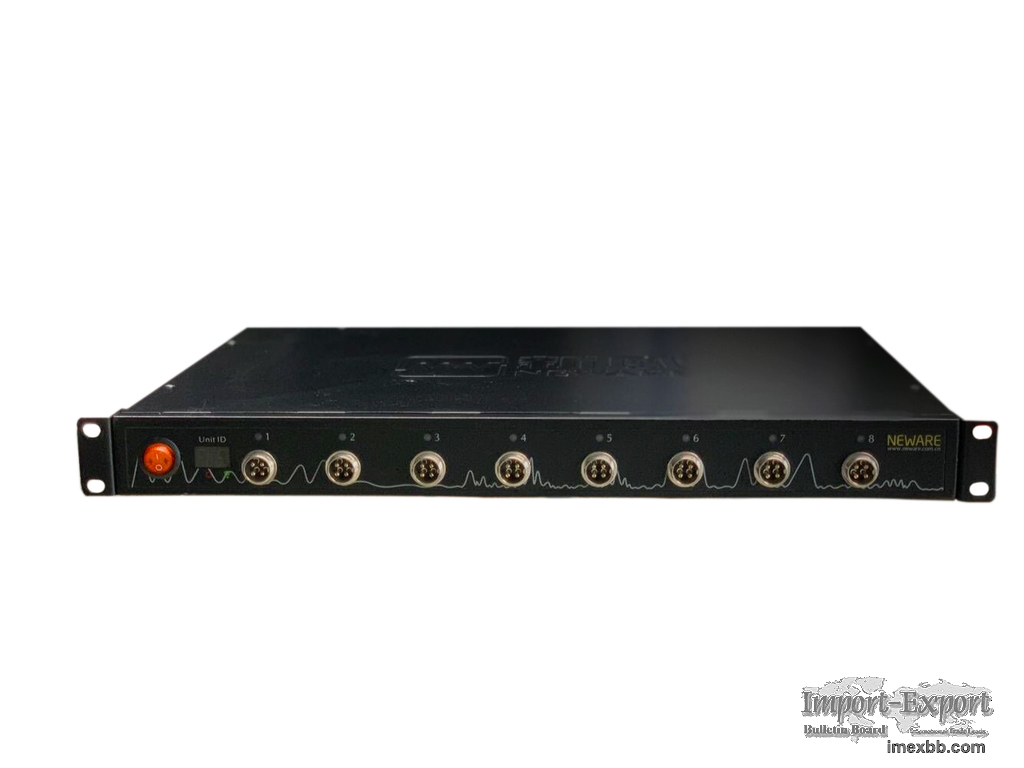

Neware 5V10mA Battery Tester For Coin Cell

1:Neware 5V10mA battery tester designed for high performance coin cell testing
of battery materials research at electrochemistry and pouch cell testing.
2:5V10mA has 8 channels and each of channel is independent that user could set
different charge discharge programs at different channels at the same time.
3:Neware BTSDA offerred to analysis testing data and operate curve.

Key Technology Parameters:
Voltage Range:-5V~5V
Lowest Discharge Voltage:-5V
Voltage Testing Precision:±0.05%

Current Range 1:5uA~1mA;
Current Range 2:1mA~5mA;
Current Range 3:5mA~10mA
Current Testing Precision:±0.05%

Primary Applications:
Pouch Cell Testing
Button Cell Testing
Three-electrode Testing
Super-capacitor Testing
Electrochemistry Research
Battery Materials Research
Electrochemical Research and Development

Key Features:
dQ/dV Curve
Cycle Life Testing
Energy Density Testing
Specific Capacity Testing
Charge Discharge Testing

Minimum Order: 1 sets
