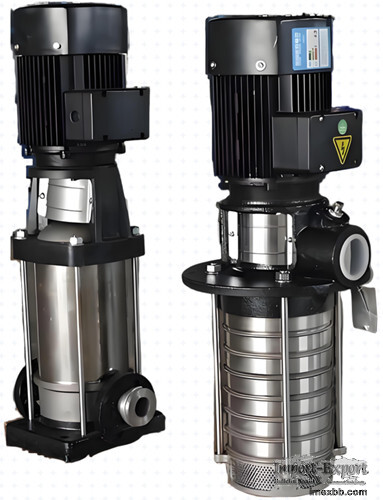

CDLK,CDLKF Stainless steel submersible multistage centrifugal pump

CDLK,CDLKF Stainless steel immersible multistage centrifugal pump
stainless steel immersed multistage centrifugal pump is developed and manufactured
with international advanced technology, which has the advantages of small volume,
light weight, high efficiency, small vibration, low noise, stable operation,
corrosion resistance, convenient installation, etc., and saves the space required
for installation.
Structure
CDLK,CDLKF pump is a down suction and up discharge multistage centrifugal pump with
standard motor installed. The motor shaft is directly connected with the pump shaft
through the coupling of pump head. The pump can be equipped with intelligent
protector according to the needs to effectively protect the dry running, phase
loss, overload, etc. of the pump. In order to meet the installation depth of the
water tank or container, the cavity body can be installed to change the length of
the pump itself. See the size and weight table for the length of different stages.
Operation conditions
The product is suitable for low viscosity, neutral, non explosive liquid without
solid particles or fibers, and the delivered liquid can not be chemically corrosive
to the pump material. (when ordering oil or oil-based liquid, it is necessary to
inform, and increase the motor power in model selection)
Normal temperature type:-15 to 70 degree celsius. hot water type :70 to 120degree
celsius.
Flow range: 1-70m3 / h
Maximum pressure: 24bar
PH range of medium: ph3-9
Motor:
The motor is totally enclosed, Grundfos type aluminum shell, air-cooled two-stage
standard motor.
Protection grade: IP55, IP56
Insulation class: Class F
Standard electricity:50HZ
1×220－230/240V 3×200－230/346－400V
3×200/346V 3×220－255/380－440V
60HZ:
3×220－240/3 , 80－415V
3×220－277/380－480V
3×220－225/380－ , 440V
Application:
This series of pumps are used for conveying machine tool coolant, lubricating
liquid, condensate, industrial cleaning equipment and other occasions suitable for
immersion pump, suitable for different temperature, flow and pressure range, CDLK
pump is suitable for non corrosive liquid, CDLKF pump is suitable for light
corrosive liquid. It is used in EDM, chip conveyor, grinder, machining center,
cooling device, industrial cleaning equipment, filtration system, etc.

Minimum Order: 1 sets
