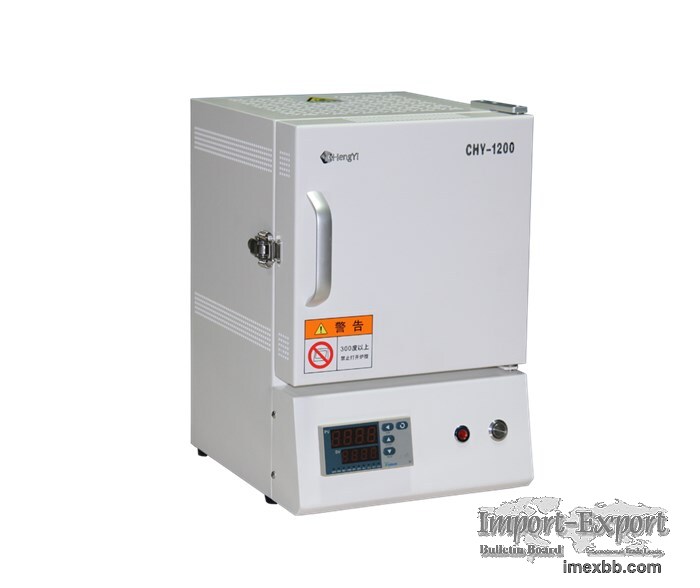

CHY-M1210 Labooratory 1200c Muffle Furnace

CHY-M1210 Labooratory 1200c Muffle Furnace with 1L Capacity( 100*100*100mm)
Desktop Muffle Furnace Manufacturer

1.100*100*100mm chamber dimension
2.high quality ceramic fiber chamber
3.PID Programmable controller
4.Heavy duty double layer structure
5.Made by Henan Chengyi

Muffle Furnace APPLICATION
1.laboratory heat thermal processing cement, building materials industry etc
2.Pharmaceutical medicines inspection, preteatment of medical sample
3.Analytical Chemistry Industry: water analysis and environmental analysis
4.Analysis of coal quality,determine moisture, ash, volatile matter, ash
melting point analysis, gray component analysis, and elemental analysis

lab muffle furnace PARAMETERS
1 Product Name 1200 Degree Mini Muffle Furnace
2 Model M1210
3 Furnace Door side open type
4 Display Model Highlight LED display
5 Maximum Temperature 1150℃
6 Working Temperature ≤1100℃
7 Heating rate ≤20℃/min  Suggest:10℃/min
8 Heating zones Single heating zone
9 Hearth dimensions 100mm×100mm×100mm
10 Hearth volume 1L
11 Control mode Intelligent PID auto control
12 Temperature Accuracy ±1℃
13 Temperature curve 30 segments programmable
14 Over heat alarm Have
15 Overcurrent protection Have
16 Thermocouple Failure Protection Have
17 Temperature measure element K-type thermocouple
18 Heating Element Fe-Cr-Al Alloy doped by Mo
19 Hearth Material high purity alumina fiber
20 After-sales service 12 month warranty, durable maintaince and
repair support
21 Power Supply 220V  50HZ
22 Rated power 0.75kw
23 Overall dimensions 400×400×450 (mm )
24 Packing 3-ply wooden case
25 Accessories plate,protective glove,crucible hook,crucible
tongs,user manual.

For more laboratory equipment, please click here to visit our website.

https://www.hnchengyi.com/1200c-mu , ffle-furnace/1200c-mini-muffle-furnace.html

Minimum Order: 1 sets
